In a reverse osmosis (RO) system, the high-pressure line is where everything gets serious. If your hose or connector isn’t up to spec, you’re risking leaks, pressure drops—or worse, damage to your membranes and system downtime. As a manufacturer of industrial RO high pressure pumps, we get asked all the time:
“What hose should I use for this pump?”

Here’s our engineer-backed answer, based on years of system design and field data, using our Rohre RO High Pressure Pump as the baseline.

For our pumps, we recommend hoses rated for 8–16 MPa (up to 2320 psi), equipped with stainless steel end fittings (DN20–DN50). Depending on the pump model, we use 2205 duplex, 304, or 316L stainless steel. These materials hold up to aggressive fluids like seawater and high-salinity wastewater—just the kind of stuff RO systems deal with daily.

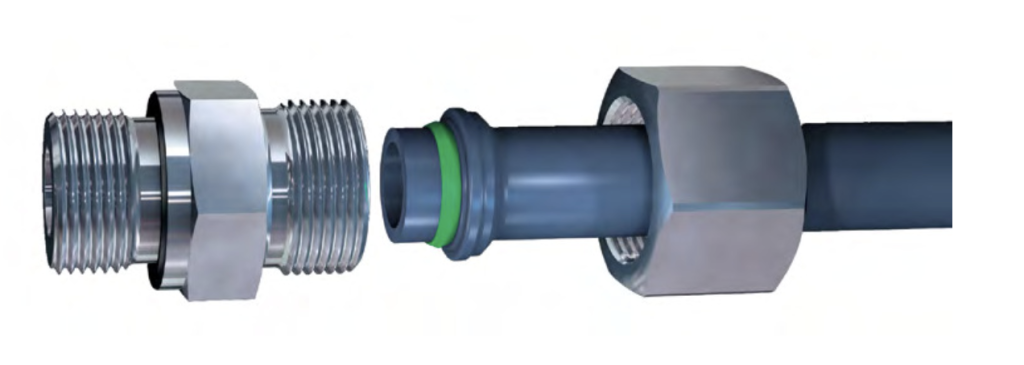

High Pressure Hose Connector Technical Specs You Should Know

Here’s what our typical high-pressure hose setup looks like:

We pressure test every hose assembly before it leaves the factory, and the fittings are machined with multi-groove geometry for secure crimping and zero-slip performance under load.

Installation Notes from the Field

Installation’s not rocket science, but here’s what we recommend for long-term reliability:

1. Match the DN size properly—don’t “make it work” with thread tape or adapters. That’s a leak waiting to happen.
2. Tighten fittings evenly, especially when you’re using stainless threads. Over-torquing can wreck the threads or distort the seal.
3. If you’re connecting two hoses, make sure the intermediate fitting matches the pressure class—don’t mix ratings.

Our hoses come pre-assembled and matched to our pump ports, so most installers find setup takes just a few minutes.

What Hose Size Should You Choose?

We usually match hoses to pump model like this:

The hose itself? We use:

• Thick rubber outer layer
• Steel wire reinforcement
• Crimped stainless ends

This combo handles high pulsation from piston pumps and resists fatigue in vibration-heavy installs.

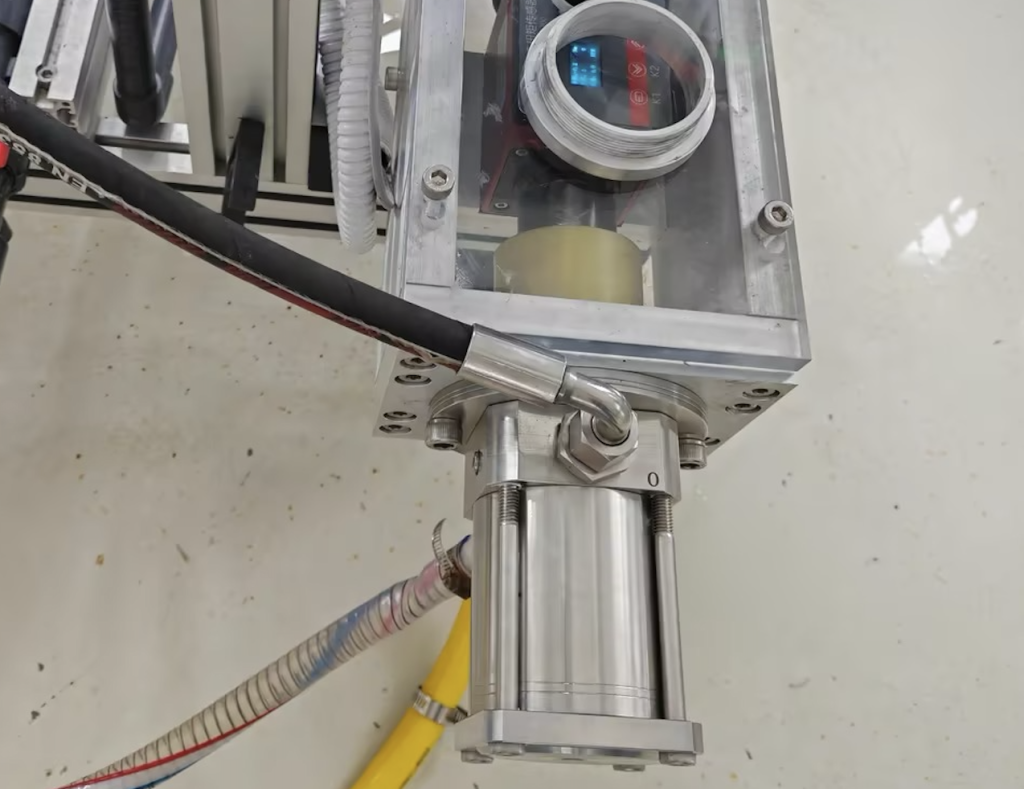

Visual Reference: What It Looks Like

Here’s a quick look at what our hose setups include:

• Ribbed stainless steel connectors (various DN sizes)
• Black high-pressure rubber hose with reinforced inner core
• Crimped stainless fittings, tested up to 16 MPa

Everything’s factory-tested. No guesswork on your end.

Final Word from Engineering

If you want your RO system to perform like it should, don’t cheap out on hose assemblies. They’re just as critical as the pump and membrane. We’ve engineered our Rohre RO High Pressure Pump hose kits to meet the pressure, chemical, and durability demands of real-world installations—seawater, wastewater, brine, you name it.

Need help sizing or sourcing the right hose set for your pump? Drop us a line. We’ll make sure your system is built to run right the first time.

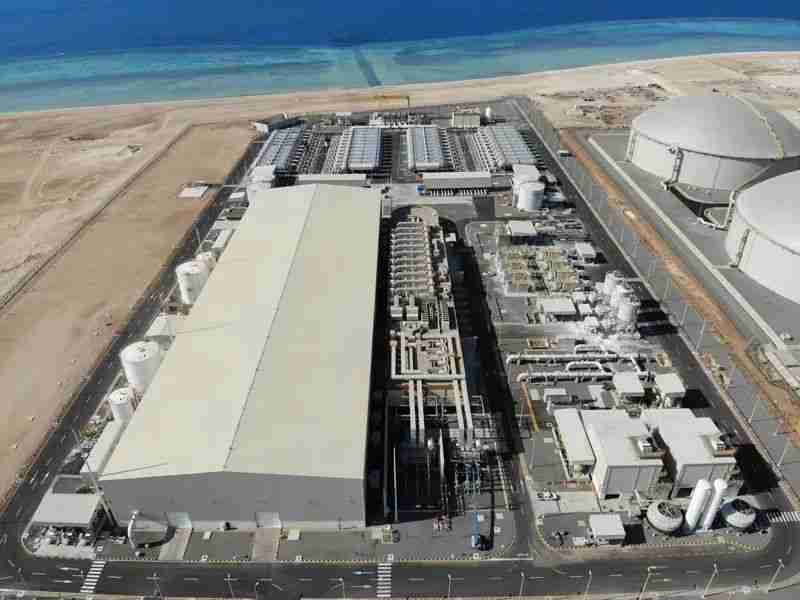

In seawater desalination systems, reverse osmosis (SWRO) technology has become a widely adopted solution to freshwater scarcity due to its relatively high energy efficiency and compact footprint. Whether it’s a large-scale desalination plant in the Middle East or a compact system on an island or offshore platform, the SWRO pump remains the core component—responsible for pressurizing seawater to the required level for membrane separation. In other words, the selection and performance of the SWRO pump directly impact the system’s output capacity, energy efficiency, and long-term operating cost.

For an SWRO system engineer, choosing a pump is not simply about “meeting specifications.” Real-world project demands are often complex—tight budgets, short delivery timelines, limited maintenance personnel—while still requiring stable, continuous operation in a highly corrosive seawater environment. Faced with these conditions, engineers typically focus on five key questions:

• Is the price reasonable? Not just the purchase price, but also energy consumption, spare parts, and long-term maintenance costs.
• Can the delivery time match the project schedule? Can standardized or modular design accelerate shipment and installation?
• Will the pump operate reliably? Is it suitable for 24/7 continuous operation?
• Is routine maintenance simple and efficient? Is remote monitoring supported? Are spare parts easy to obtain and replace?
• Is the material resistant to seawater corrosion? Especially under extreme conditions like high salinity, temperature, and pressure.

This article explores eight key aspects of SWRO pump selection—including lifecycle cost, delivery time, reliability, maintenance, corrosion resistance, technology comparison, real-world case studies, and engineering recommendations. By combining technical insight with hands-on experience, it aims to help engineers avoid common selection pitfalls and make informed decisions with confidence.

1. Price and Lifecycle Cost

In SWRO projects, pump pricing is often the first decision barrier. But experienced engineers understand that initial cost is just the tip of the iceberg—what truly matters is the total lifecycle cost (LCC), including long-term energy consumption, maintenance, and downtime.

According to data from EUROPUMP and the Hydraulic Institute, energy consumption typically accounts for 60–70% of a pump’s total lifecycle cost over 15 to 20 years, while the equipment’s purchase price often represents less than 15%. In other words, a high-efficiency pump that costs 20% more upfront can pay for itself within three years through lower energy bills.

In addition, the configuration of energy recovery devices (ERDs) and how well they integrate with the pump system can significantly affect the overall energy cost per cubic meter of produced water. Some engineering firms may choose lower-efficiency configurations to reduce the upfront bid price, but this often leads to higher operational costs, reduced membrane life, and ultimately, a higher total cost of ownership.

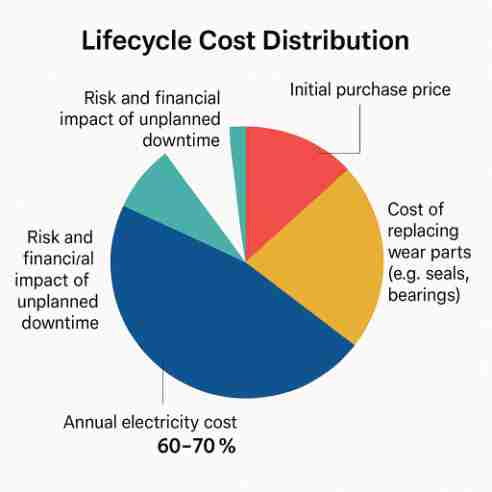

We recommend that SWRO pump selection incorporate a lifecycle cost evaluation, comparing the 10- or 15-year total cost of different pump options, including:

• Initial purchase price
• Annual electricity cost
• Cost of replacing wear parts (e.g., seals, bearings)
• Labor and routine maintenance cost
• Risk and financial impact of unplanned downtime

Leading pump manufacturers often provide lifecycle cost calculators or reference project data that can be used for realistic comparisons. These tools often offer a far more accurate view of long-term value than looking at price alone.

2. Delivery Time and Modular Design

In SWRO project execution, equipment delivery time often dictates the overall project schedule—especially for emergency deployments or phased construction plans. A shorter delivery cycle means faster installation, earlier water production, and quicker return on investment.

Axial piston high-pressure pumps feature a compact structure and high part standardization, making them suitable for faster production and shorter lead times. For small and mid-sized SWRO systems, standard axial piston pump models are often available from stock or can be assembled and shipped within 2 to 6 weeks.

More and more engineering companies now adopt multi-train parallel designs (e.g., 6×250 m³/day instead of 1×1500 m³/day). This approach increases system flexibility and redundancy, while also allowing each train to use standardized skids. This not only simplifies production planning but also supports batch delivery to match on-site construction progress.

So standardization + modular delivery makes axial piston pumps ideal for modern SWRO system execution, where speed, scalability, and simplicity are key priorities.

3. Reliability and Design Life

In SWRO systems, high-pressure pumps must run continuously and reliably—often 24/7 under high salinity and elevated pressure. A single pump failure can halt water production, trigger membrane pressure imbalances, and cause costly downtime. For this reason, reliability isn’t a feature—it’s a baseline requirement.

Axial piston high-pressure pumps are widely recognized for their stable and predictable mechanical design, making them ideal for small and medium-scale SWRO systems where consistency and simplicity are essential. Instead of relying on impellers like centrifugal pumps, axial piston pumps use a direct reciprocating motion to pressurize seawater. Fewer moving parts and linear force transfer allow for smoother operation and easier diagnostics.

Key features that support long service life and reliability include:

• Wear-resistant piston assemblies, often made of ceramic or tungsten carbide, ensuring long-term operation under high pressure and high salinity.
• Stable swash plate drive system, which provides precise and efficient axial motion with minimal vibration.

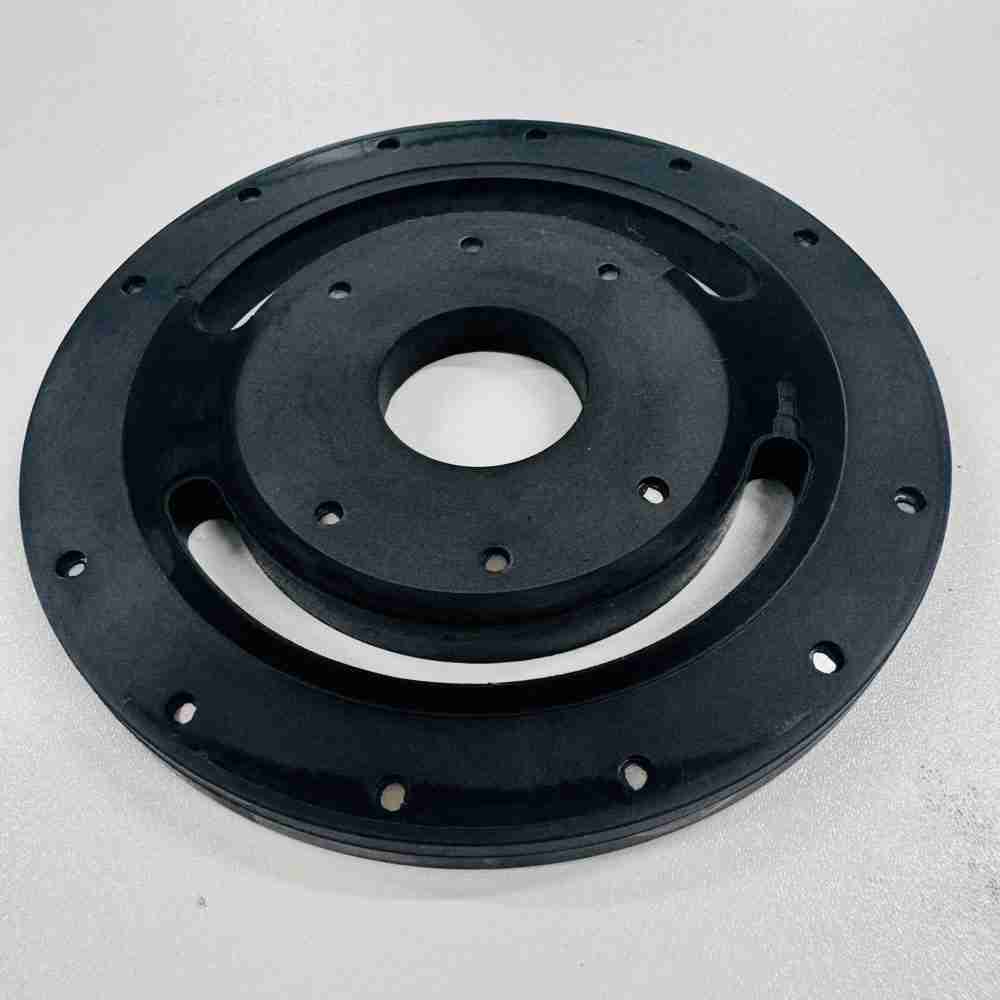

• Optimized valve plate and cylinder block design, which maintains smooth fluid pathways and reduces pressure loss and internal stress.
• Low vibration and noise, eliminating the need for complex foundation damping.
• Oil-free lubrication options, suitable for clean environments and minimizing the risk of contamination or leakage.

High-quality axial piston pumps are typically designed for Mean Time Between Failures (MTBF) exceeding 20,000 hours. With proper pretreatment and stable operating conditions, many systems run for 2 to 3 years without needing internal inspection or component replacement.

In practice, many SWRO systems adopt N+1 configurations—such as one duty and one standby pump—allowing for rotation and planned maintenance without affecting daily operation. This approach further enhances uptime and system resilience.

4. Ease of Maintenance and Maintenance Cost

In any SWRO system, the operational phase usually spans 10 to 20 years, and over time, maintenance becomes a major cost driver—especially in remote areas like islands, offshore platforms, or industrial zones with limited service personnel. That’s why maintenance simplicity and speed of recovery are critical factors when selecting a pump.

Compared to multistage centrifugal pumps, axial piston high-pressure pumps are inherently easier to maintain, thanks to their compact structure, fewer components, and modular internal design. Here’s how they deliver operational advantages:

1. Visual, accessible structure

Key components—such as pistons, seals, and valve plates—are concentrated in the pump housing. These parts can be inspected or replaced by simply removing the front cover, with no need for heavy lifting or full disassembly. Most routine tasks can be done on-site by plant personnel.

2. Standardized wear parts

Critical consumables such as sealing rings, guide sleeves, and valve springs are standardized across pump models. This simplifies inventory management and ensures fast replacements. Many suppliers offer pre-packed maintenance kits, further reducing downtime and errors during servicing.

3. Long service intervals

High-quality axial piston pumps typically require only one maintenance check every 6 to 12 months. In systems with good pretreatment and stable operating conditions, some models have operated continuously for 18+ months without part replacement.

4. Remote monitoring and predictive maintenance

Modern axial piston pumps can be equipped with sensors for vibration, temperature, and pressure. These sensors can be connected to SCADA or PLC systems to support predictive maintenance, allowing engineers to detect anomalies before failure occurs.

5. Low training requirements

Because of their straightforward structure and standardized maintenance steps, new operators can be trained quickly, enabling localized maintenance teams to perform routine servicing without depending on manufacturer field engineers.

5. Materials and Corrosion Resistance

Seawater is one of the most aggressive fluids in industrial applications—rich in chlorides, dissolved oxygen, biological contaminants, and various corrosive ions. In SWRO systems, where pumps operate under high pressure and salinity, material selection is critical to long-term reliability and cost control.

Axial piston high-pressure pumps have fewer wetted components than centrifugal pumps, but each contact surface must still be designed to resist corrosion, erosion, and scaling. The following are key material considerations for the major components:

Pump Housing

The pump housing is directly exposed to high-pressure seawater. Common materials include:

• 2205 Duplex Stainless Steel – offers a good balance between strength, cost, and corrosion resistance.
• 2507 Super Duplex Stainless Steel – preferred for harsh seawater environments with high temperatures and salinity.
• Titanium Alloys – used in specialized projects (e.g., offshore, defense) requiring extreme corrosion resistance and zero tolerance for failure.

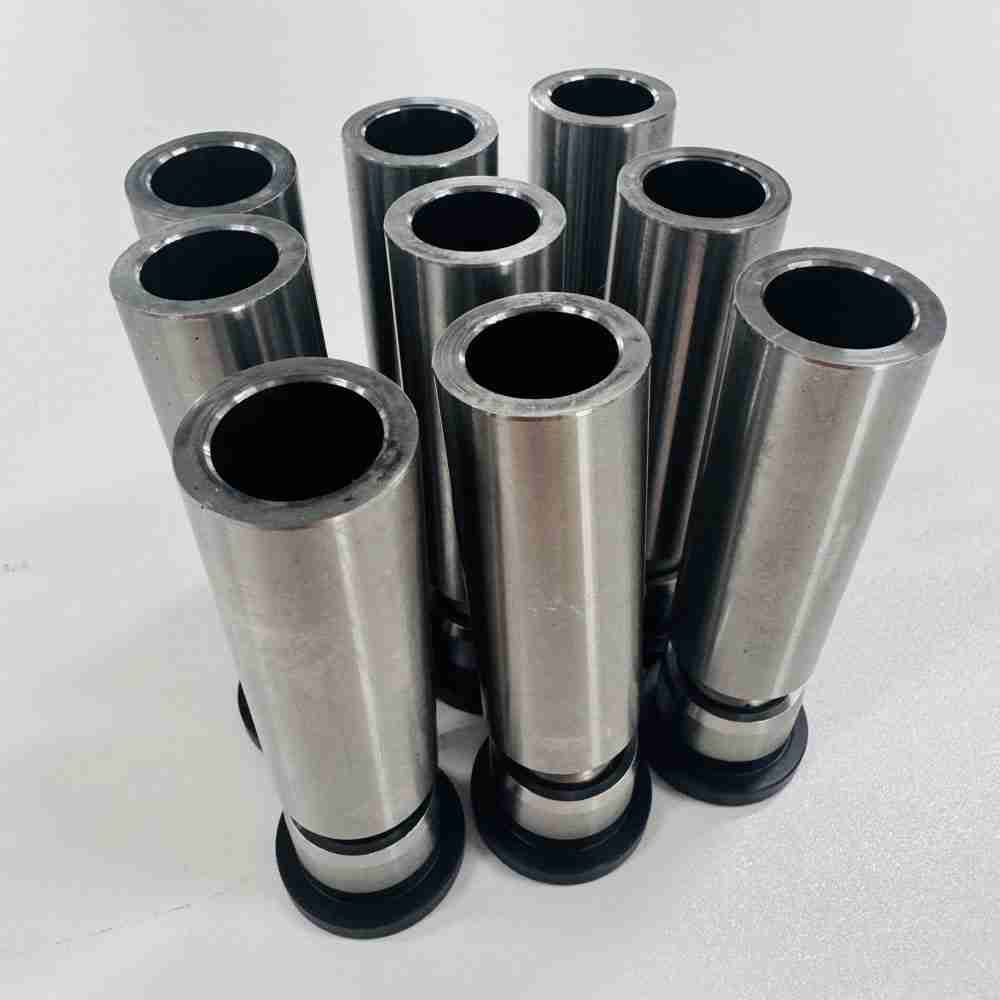

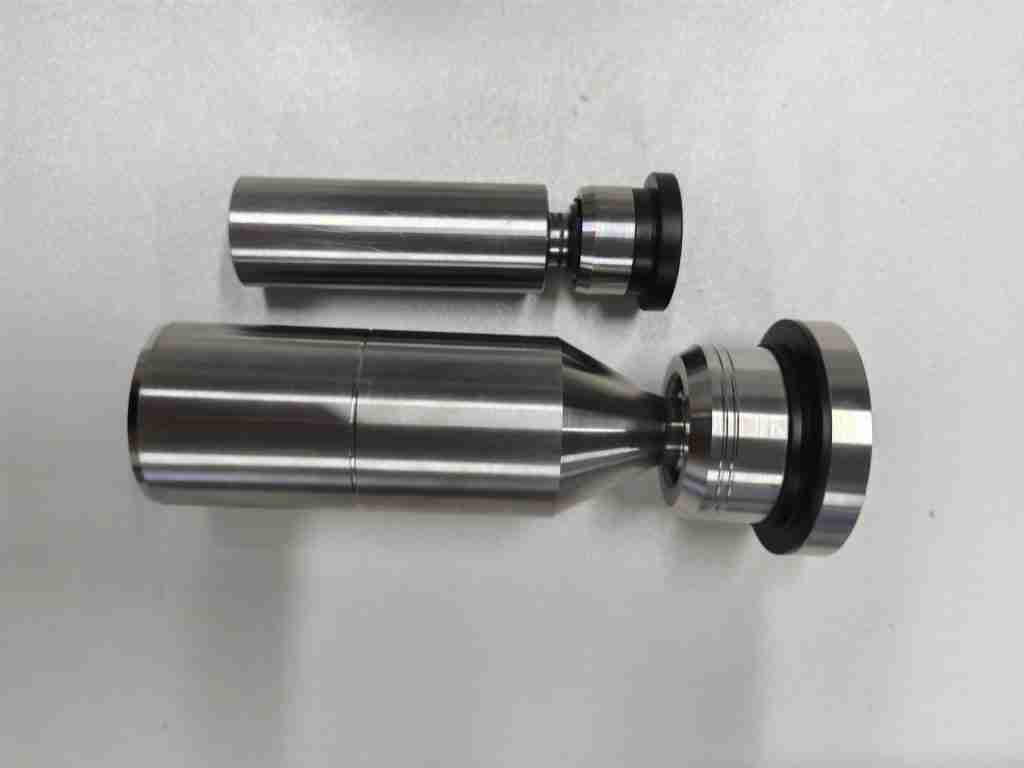

Pistons and Cylinder Block

The piston assemblies often use ceramic or tungsten carbide-coated materials. These ensure exceptional wear resistance and chemical stability under constant reciprocating motion. The inner surface of the cylinder block is typically precision-ground and polished to prevent micro-cracking and salt buildup.

Valve Plate, Springs, and Valve Seats

These components operate under dynamic stress and must resist pitting and fatigue. Materials such as 316Ti stainless steel, PEEK engineering polymers, or even ceramic valve seats are commonly used to extend service life in corrosive brine.

Sealing Elements

High-pressure seals play a critical role in the overall performance, safety, and service life of a seawater high-pressure pump. Based on practical applications in SWRO systems, two commonly used sealing materials are:

• NBR (Nitrile Rubber): Known for its excellent sealing properties and good resistance to oil, abrasion, and seawater. NBR is cost-effective and widely used in moderate pressure and temperature environments.
• PTFE (Polytetrafluoroethylene): Offers exceptional chemical resistance and a low coefficient of friction, making it ideal for dynamic sealing applications in highly corrosive conditions. PTFE is often used in backup rings or combined with elastomers for improved sealing reliability.

Manufacturers may also provide material variations depending on water quality—for example, open seawater intake versus deep-well brine. Engineers should always prioritize field-proven materials with validated performance in real desalination environments.

If your project involves high salinity, elevated temperatures, or extended operation cycles, investing in reliable seal materials and surface treatments will reduce the risk of failure, minimize maintenance, and help protect the long-term stability of the entire SWRO system.

6. Technology Comparison: Axial Piston Pumps VS. Multistage Centrifugal Pumps

In SWRO systems, axial piston pumps and multistage centrifugal pumps are both widely used, but they serve different applications based on system scale, layout, and operational needs. One is not necessarily better than the other—they simply fit different use cases.

Application Overview

• In large SWRO facilities (e.g., >500 m³/h), multistage centrifugal pumps are preferred for their ability to handle high flow rates and integrate efficiently with large-scale Energy Recovery Devices (ERDs).
• For small to mid-size SWRO systems (typically <300 m³/h), especially in islands, ships, containerized plants, or remote areas, axial piston pumps are often the better choice—thanks to their compact size, fast response, short lead time, and easy maintenance.

Quick Selection Guide

And here is a side-by-side technical comparison

7. Case Study: Rohre Pump in Containerized SWRO System (38 m³/day)

Project Type: 20-foot containerized seawater reverse osmosis system
Application: Potable water production for coastal hotels, schools, real estate developments, and off-grid communities
Production Capacity: 10,085 GPD / 38 m³/day
Pump Solution: Rohre axial piston high-pressure pump
Working Pressure: 800–900 psi
Recovery Rate: 26%
Feed Water TDS: ≤ 45,000 ppm
Product Water TDS: ≤ 500 ppm
Power Source: Grid or solar-compatible
System Weight: ~3,750 kg including container

Background

A Singapore.-based SWRO system manufacturer specializing in pre-assembled containerized desalination solutions was seeking a compact, energy-efficient, and corrosion-resistant high-pressure pump for its 38 m³/day unit. The system is designed to serve small-scale decentralized applications, including hotels, schools, golf courses, and residential zones near coastal or off-grid areas.

The customer initially selected a high-end international brand of axial piston high-pressure pump for their containerized SWRO systems. While the performance was reliable, the high unit cost and long lead time became major obstacles as their annual production scaled up.

With nearly 300 pumps required each year, the customer began evaluating alternative suppliers that could meet the same performance standards while improving delivery timelines and cost efficiency.

Rohre was invited to participate in a trial batch. After completing a series of technical inspections and performance tests, our axial piston pump successfully passed all validation procedures. The results met the customer’s expectations for reliability, corrosion resistance, and pressure stability.

Since then, Rohre has become the customer’s approved pump supplier, now providing high-pressure pumps in volume. By switching to Rohre, the customer has reduced their annual pump procurement cost by over 40%, while also shortening lead times and enhancing the overall competitiveness of their SWRO systems in the market.

System Configuration

Pretreatment Section:

• Dual 5-micron sediment cartridge filters (PVC housing)
• Multimedia filter (16″x65″) with automatic backwash
• Acid dosing system to control feedwater pH and prevent scaling
• Antiscalant dosing system with adjustable metering pump
• Feedwater booster pump (316 SS), delivering 40–50 psi inlet pressure

RO Core:

• 3 x 8″ Dow Filmtec or equivalent membranes
• 1000 psi FRP membrane housing
• Rohre axial piston pump, with super duplex stainless steel material
• VFD-compatible 20 HP TEFC motor (220V/380V/460V, 3 Phase)
• High-pressure piping: duplex stainless steel
• Low-pressure piping: Schedule 80 PVC or reinforced tubing

Instrumentation & Controls:

• Digital water quality monitor (TDS for feed and product water)
• Panel-mounted flow meters (feed, product, concentrate)
• Liquid-filled pressure gauges (316 SS)
• Automatic control system with PLC and HMI/LED panel
• Auto start/stop, alarm conditions for pressure, tank level, and shutdowns
• Integrated logic for permeate flush during shutdown/startup

Post-Treatment:

• Chlorine dosing system for product water sterilization
• pH adjustment dosing system for final product pH correction
• TDS-based diversion valve to discard off-spec product water

Results & Performance

Not only 38m3/day containerized systems, Rohre axial piston high pressure pumps are also used in 27m3/day, 120m3/day, 200m3/day, 250m3/day, 300 M3/Day containerized SWRO systems, which are widely used in Schools, Hotels, Golf Courses, Irrigation, Factories, Hospitals, Real Estate Developments, Housing subdivisions and other scenarios.

After extensive technical verification and long-term performance evaluation, Rohre’s axial piston pumps are officially approved as the customer’s preferred high pressure pump supplier. Since adoption, these pumps have been providing excellent reliability, with no serious failures reported during full load continuous operation.

By switching from a well-known international brand to Rohre’s axial piston pumps, the customer achieved:

• Reduced annual pump procurement costs by more than 40%
• Shorter delivery times, reduced project lead times, and faster system deployment
• Increased internal profit margins and system competitiveness in a cost-sensitive global market

Operators also report that Rohre pumps are quiet, compact, and easy to service, with clear maintenance access and standard spare parts available. The successful implementation has established Rohre as a long-term strategic pump partner, currently supplying nearly 300 pumps per year to support the customer’s growing system needs.

8. Engineering Recommendations

Based on the key factors discussed—price, delivery time, reliability, maintenance, and corrosion resistance—axial piston high-pressure pumps have proven to be a reliable and cost-effective choice for small to medium-scale SWRO systems. For engineers involved in system design, equipment selection, or long-term operation planning, we offer the following practical recommendations:

a. Consider total lifecycle cost (LCC), not just the purchase price

A slightly more expensive, high-efficiency pump can pay off quickly through energy savings and reduced downtime. Include energy use, maintenance, spare parts, and failure risk in your evaluation.

b. For projects with tight schedules, use pre-engineered skid-mounted modules

Axial piston pumps are highly compatible with modular systems and are often available in stock. This significantly reduces delivery and on-site installation time.

c. Use axial piston pumps for flow rates below 300 m³/h

In small and mid-scale SWRO systems, piston pumps offer better efficiency, a smaller footprint, and simpler control compared to centrifugal pumps.

d. Choose materials with proven seawater resistance

Pump housing made from 2205/2507 duplex stainless steel or titanium alloys, along with ceramic pistons and corrosion-resistant valves, will ensure long-term durability.

e. Prioritize standardization and maintainability

Select pump models with interchangeable wear parts and field-replaceable components. Maintenance kits and on-site serviceability will reduce long-term O&M costs.

f. Design for redundancy when possible

An N+1 pump configuration (e.g., 1 duty + 1 standby) minimizes risk and allows for scheduled maintenance without interrupting system operation.

g. Choose suppliers with real SWRO project experience

Work with manufacturers who have proven field performance, can provide reference cases, and understand the operational challenges of desalination systems.

Final Thought

In seawater reverse osmosis systems, the high-pressure pump is not just a mechanical component—it defines the system’s core performance, energy consumption, and operational reliability. Choosing the right pump affects not only the short-term output but also the long-term total cost of ownership, system uptime, and client satisfaction.

Rohre axial piston high-pressure pumps have been validated in a wide range of SWRO installations, providing reliable performance, corrosion resistance, and modular compatibility for fast-track projects. Whether you’re working on a containerized unit or a distributed desalination network, Rohre offers engineering-driven selection guidance, standardized configurations, and flexible customization options.

If you’re designing your next SWRO system and need a pump partner who understands both the technical and commercial challenges, we invite you to connect with Rohre team.

Let’s build desalination systems that last longer, perform better, and cost less over time.

In water treatment and industrial systems, keeping your process reliable, clean, and cost-effective depends on the right high-pressure pump. That’s why we developed the Rohre HPH and HPS axial piston pumps — to help engineers and system designers meet the high-pressure needs of RO, ultrapure water, and seawater desalination systems without the risks of oil contamination or unexpected downtime.

With oil-free operation, stable performance up to 160 bar, and long-lasting design, these pumps are built to help you hit your zero liquid discharge (ZLD) goals, protect your membranes and equipment, and lower your long-term operating costs.

Applications: Designed for Demanding RO Systems Like Yours

Whether you’re building or running a reverse osmosis system, you know the pressure side has to be solid — reliable, stable, and easy to maintain. That’s exactly where our Rohre HPH/HPS axial piston pumps fit in. These pumps are already being used in systems like yours, helping engineers stay ahead of performance, uptime, and environmental goals.

● Reverse Osmosis for ZLD (Zero Liquid Discharge)

In ZLD systems, pressure needs are high and constant. Our HPH pumps deliver that pressure through multi-stage RO setups, helping push water through membranes even at the final, high-concentration stage. That means better water recovery and fewer maintenance headaches.

● Ultrapure Water Systems

Clean systems need clean pumps. The oil-free design of our HPH pumps ensures that no oil ever touches your ultrapure water — and the low-pulsation output keeps your membranes and instruments running smoothly.

● Seawater Desalination

Desalination is tough on pumps. The HPS series is built with super duplex stainless steel (2507), made to handle 60–85 bar seawater RO duty without corrosion or performance drop. They’re a match for the harshest marine environments.

● Industrial Wastewater RO

When your RO system deals with salty or chemical-rich water, scaling and corrosion can shut things down fast. That’s why the HPS pumps include an integrated flush valve, letting you rinse out the internals after use — no disassembly, no extra downtime.

● High-Pressure Cleaning Systems

Need high-pressure, clean water for pipe or equipment washing? These pumps deliver steady flow without oil residue. That makes them a smart fit for clean-in-place (CIP) systems or spray stations where cleanliness matters.

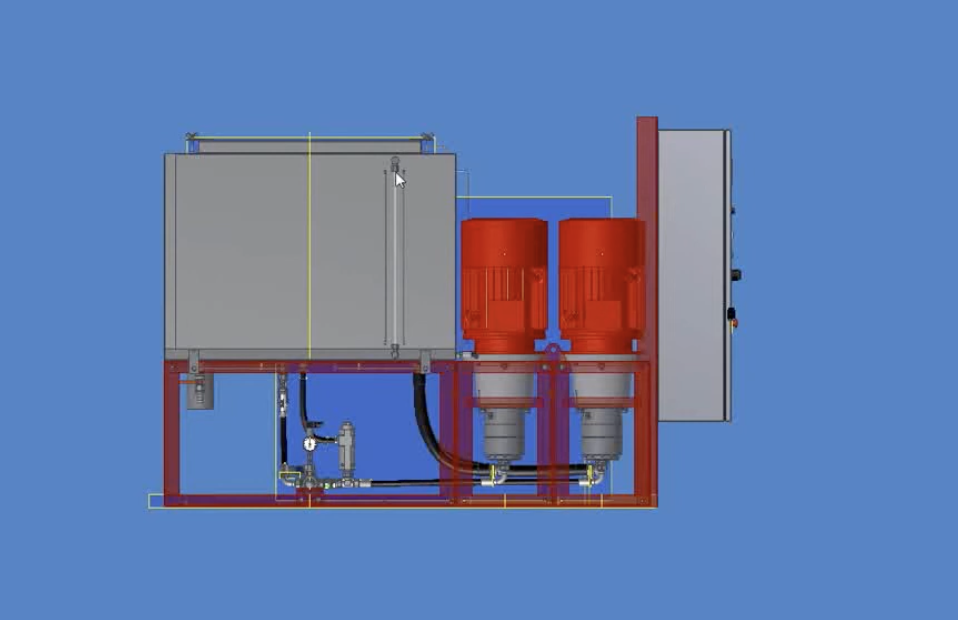

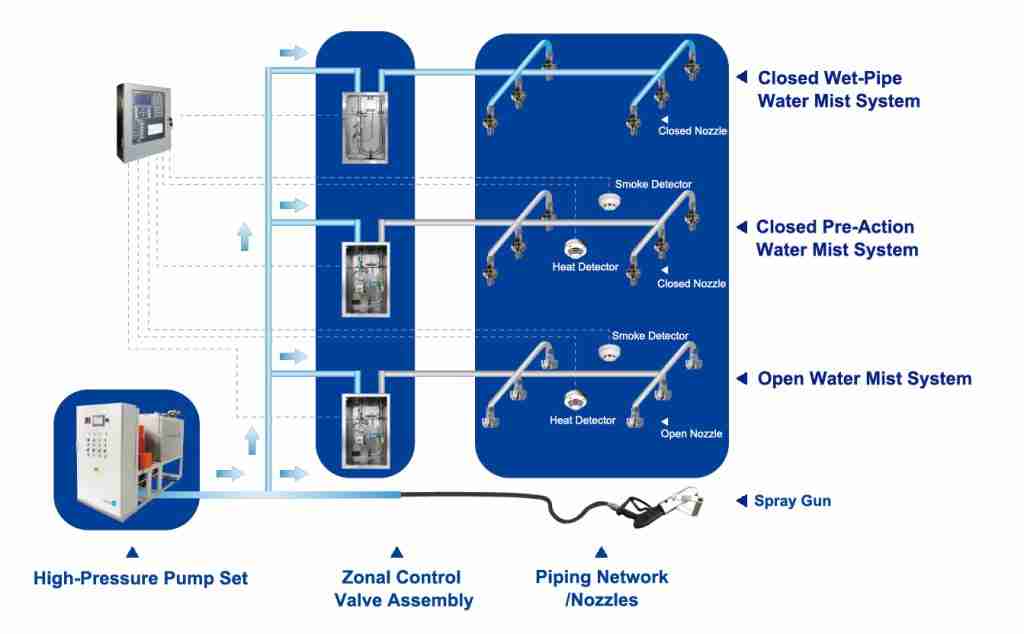

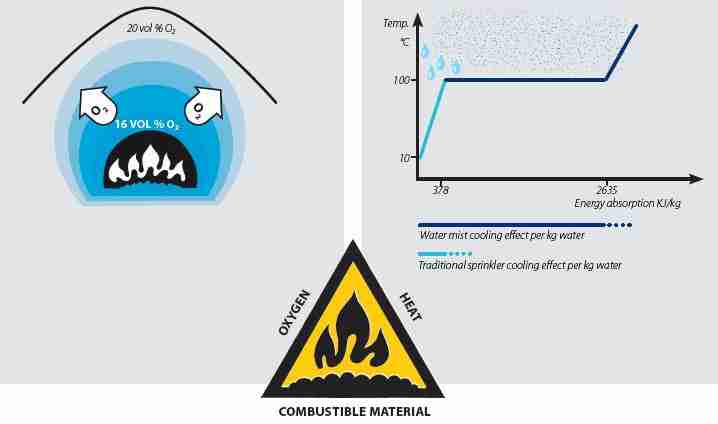

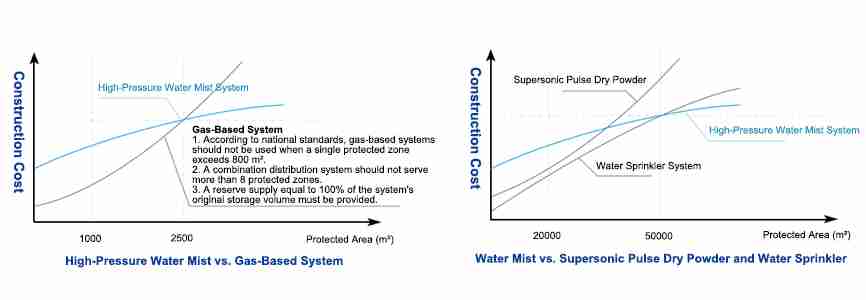

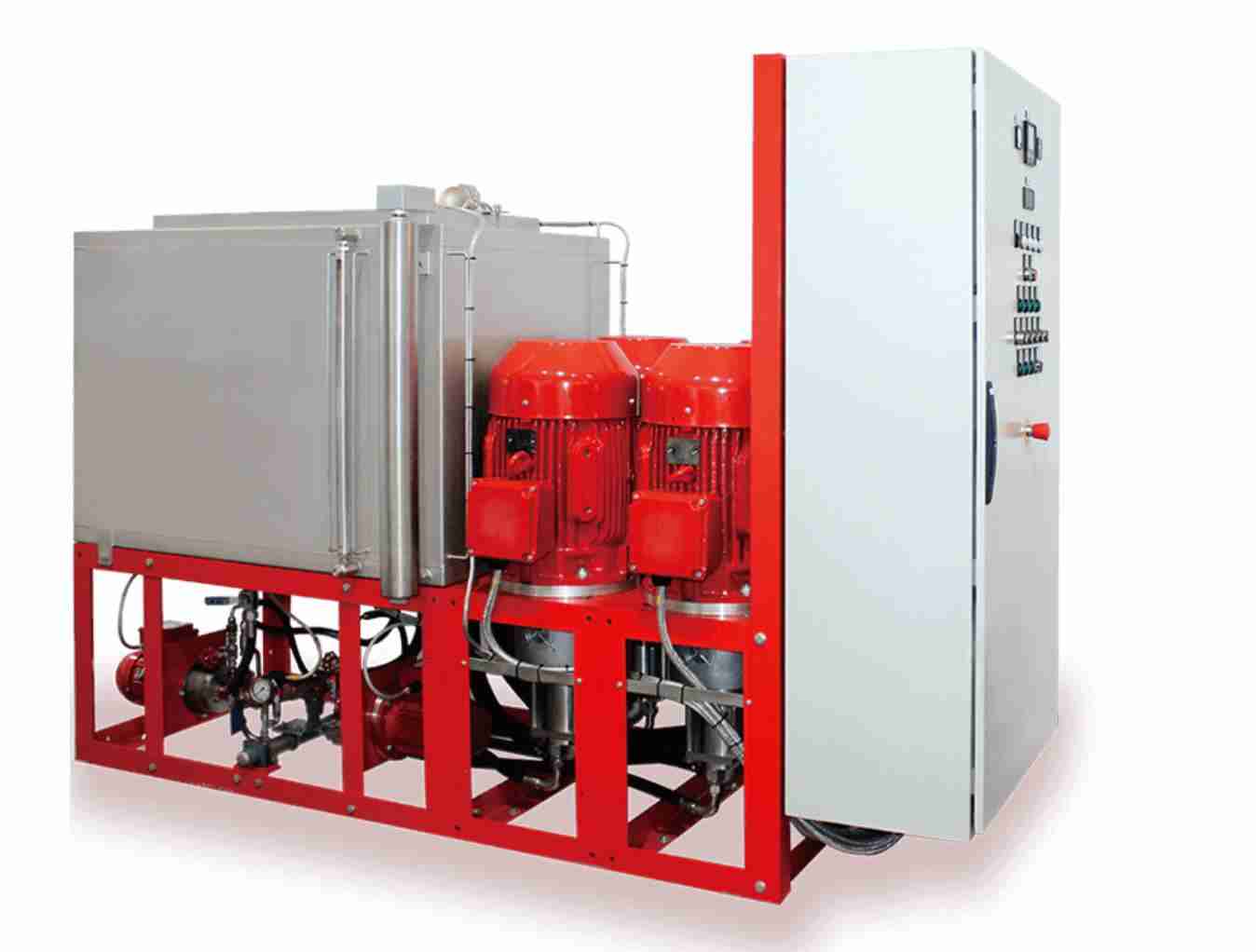

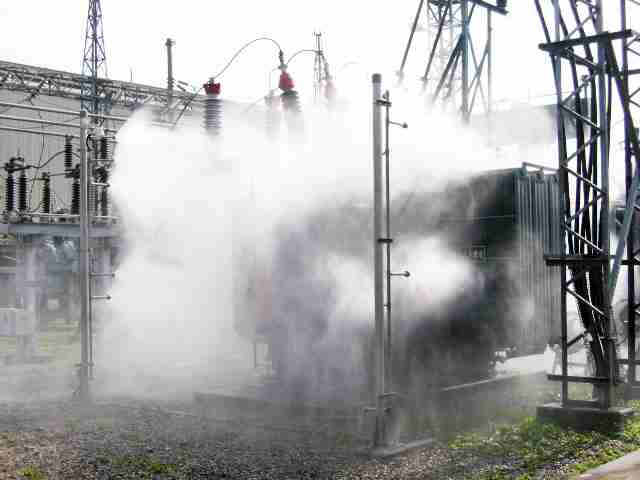

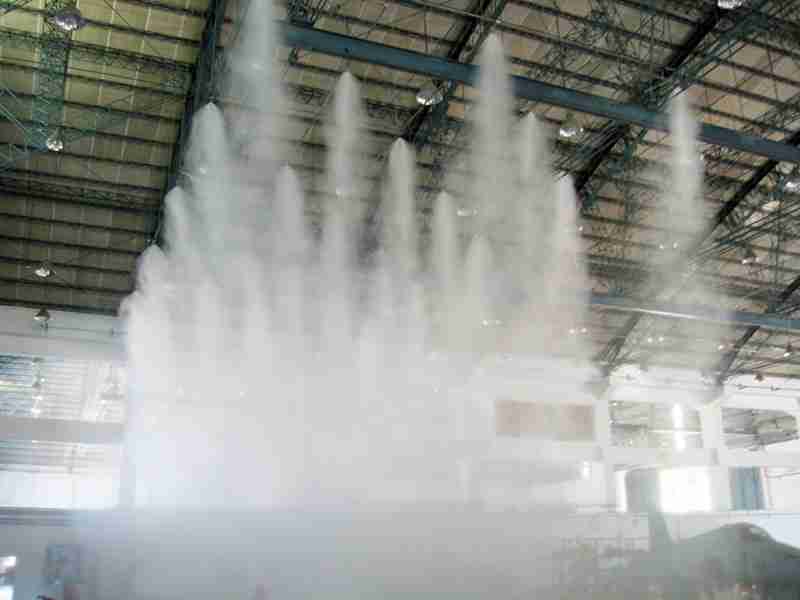

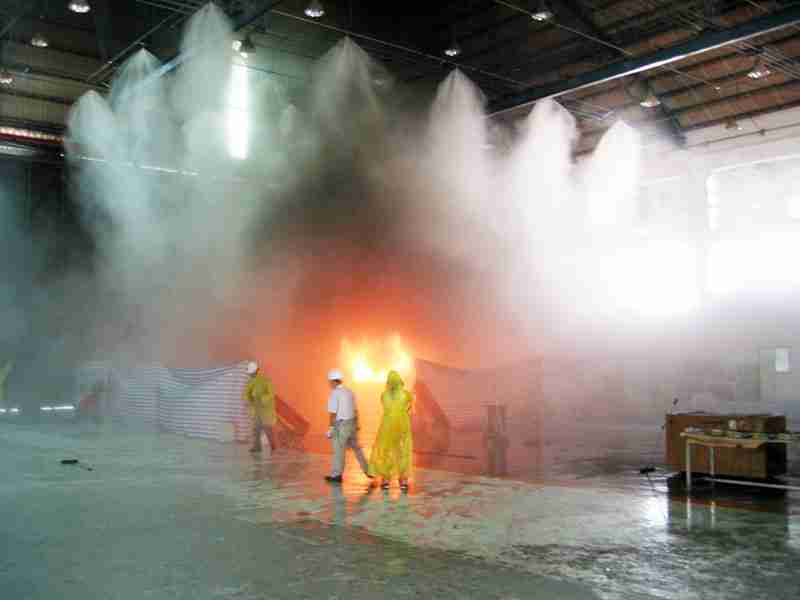

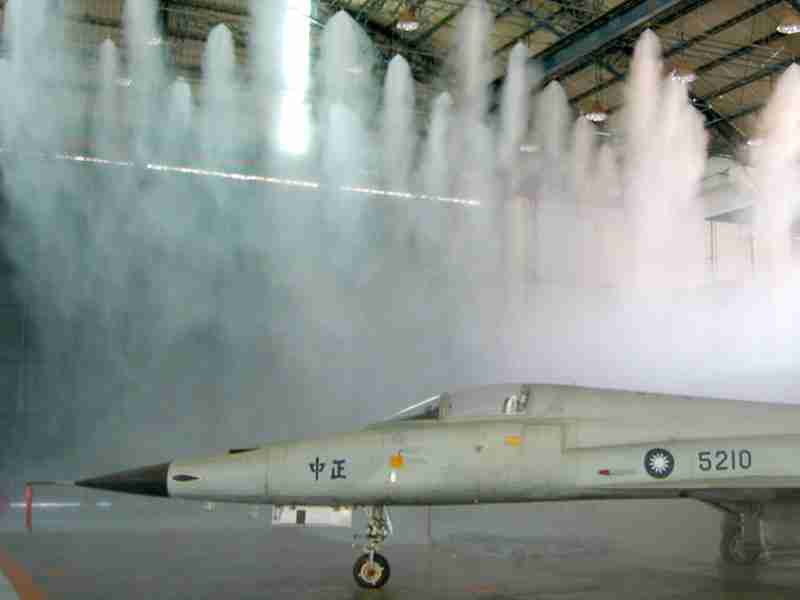

● Water Mist Fire Protection & Dust Control

Rohre pumps are also used in fine mist systems for fire suppression and dust control — where quiet, reliable high pressure is a must. Their compact design, low noise, and long running life make integration easy and operation worry-free.

These are just a few examples. HPH/HPS pumps are also used in water hydraulics, high-pressure testing, and any other system requiring clean, reliable high-pressure water.

How to Choose the Right Pump for Your RO System

(Selection Made Simple for Engineers)

Picking the right pump doesn’t have to be complicated. If you know your system, we’ll help match the right model — here are the five key things you need to check:

1. What Pressure and Flow Do You Need?

This tells you which series to look at:

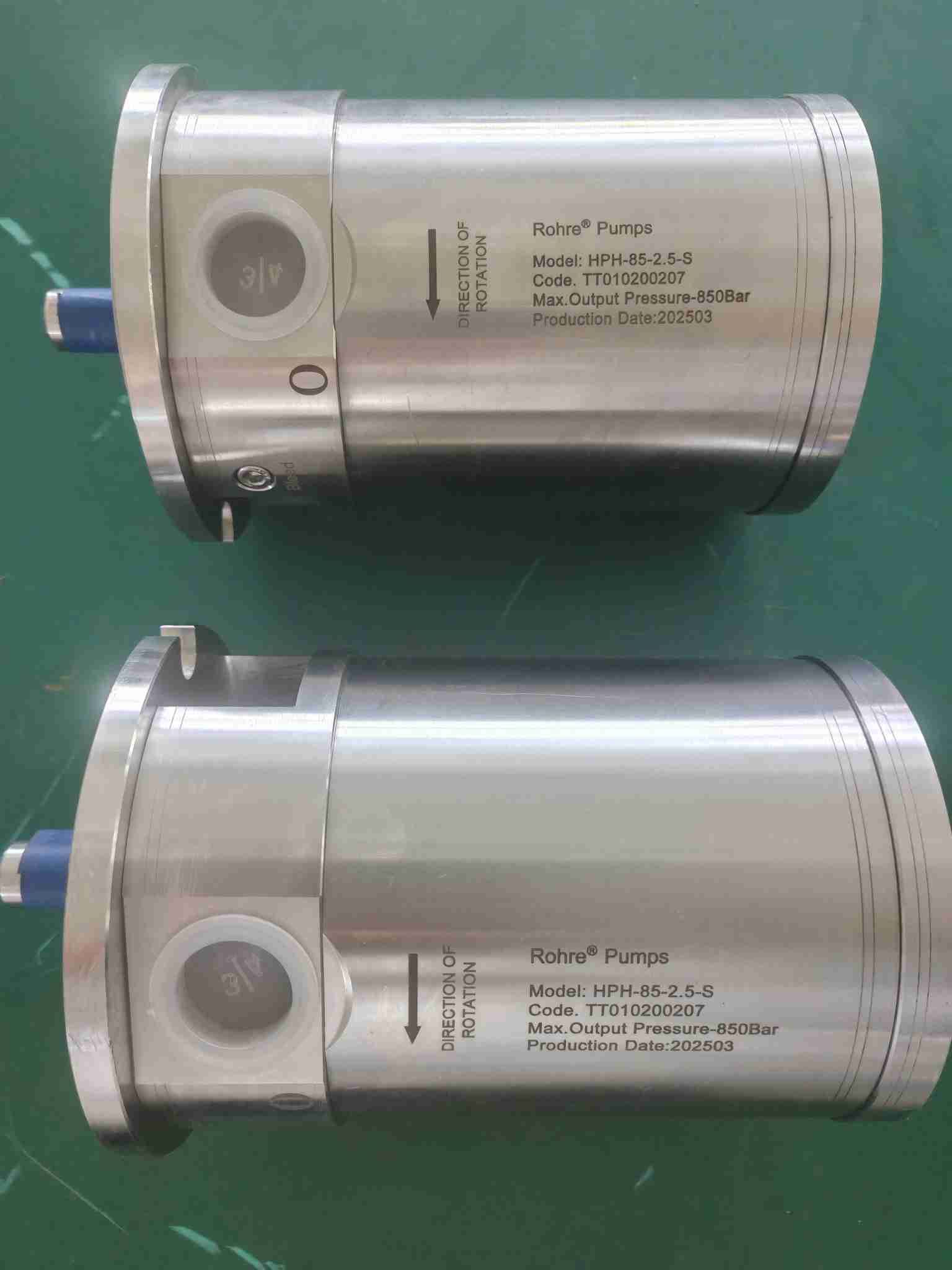

• HPH series – For fresh or clean water, up to 160 bar. Best for RO and ZLD systems that need high pressure.
• Ultrapure water – Pressure is usually below 100 bar, but water purity is critical.
• HPS series – For seawater or chemical wastewater, up to 85 bar, perfect for desalination.

Tip: Always choose a pump that can handle more than your system’s max pressure. This prevents overloading and extends pump life.

2. What Speed Should You Run It At?

Our pumps work between 700–3500 rpm, but here’s the trick:

• 1500 rpm (at 50 Hz) is the sweet spot — stable, quiet, and cool.
• Higher speeds = more flow, but also more noise and wear.
• Lower speeds (<1000 rpm) = quieter, but you’ll need good cooling.

Tip: When in doubt, design around 1500 rpm. It’s the safest and most efficient zone.

3. What Fluid Are You Pumping?

(Material Selection)

Not all water is the same — choose the right material to prevent corrosion:

Tip: Not sure? Just send us your fluid info — we’ll help you decide.
marketing@cncontrolvalve.com

4. How Much Motor Power Will You Need?

• The higher your flow and pressure, the bigger the motor.
• Example: HPS 0.8-1.0 at 85 bar / 3500 rpm needs 3–4 kW
• Bigger models? You may need 11 kW, 30 kW, or more.

Also consider temperature:

• Fluid temp: 2–50°C
• Hot environments or high altitudes? Use a bigger motor or extra cooling.

Tip: Never under-size your motor. It’s better to go a bit bigger and run cool.

5. Is Your Inlet Pressure and Filtration Set Up Right?

• Pumps need positive inlet pressure — at least 0.5 bar, better if above 2 bar.
• No suction, no vacuum. That causes cavitation and damage.
• Filter your fluid before the pump:
  • 10 μm nominal
  • 25 μm absolute max

Tip: A simple inline filter can protect your pump and save you a lot in the long run.

Why Engineers Choose Rohre Pumps (and Stick with Us)

We know what matters in the field — pumps that work without surprises. That’s why engineers trust ROHRE’s HPH and HPS series. Here’s how these pumps make your job easier, your system safer, and your budget happier:

Oil-Free Means Worry-Free

With water as the only cooling and lubricating medium, there’s zero risk of oil contamination. That means cleaner water, fewer system shutdowns, and one less thing to maintain.

Smooth Flow = Longer Membrane Life

Our multi-plunger axial design keeps the pressure steady — so your RO membranes don’t suffer from pressure spikes or vibration. It’s not just quiet, it’s protective.

Built to Resist What Others Can’t

Pumping seawater or chemical waste? No problem. We offer corrosion-resistant materials like SS316 and duplex stainless steel (2205/2507) — so your pump lasts longer, even in the harshest fluids.

Smart Flushing That Saves Time

Only in our HPS series: a built-in flush valve that lets you clean out salt or residue after shutdown. No disassembly needed. You rinse, and you’re ready for the next run.

Designed for Hands-On Engineers

Need to swap a seal? Clean the pump head? With our modular build, it’s fast and simple. No special tools. No waiting on a service team.

Run It, Forget It

Thanks to solid design and materials, these pumps just keep going — even under tough conditions. You’ll see less downtime, fewer part failures, and lower lifetime costs.

Why So Many RO System Brands Choose Rohre

When you’re selecting a high-pressure pump, you’re not just buying a machine — you’re betting on reliability, support, and peace of mind. That’s where Rohre makes a real difference.

Here’s what makes our pumps your smartest long-term choice:

Built to International Engineering Standards

Our pumps are designed and tested under strict UK and EU industrial guidelines. That means you get consistency, precision, and zero surprises — even under the most demanding conditions.

Quiet, But Powerful

Running at full pressure, our pumps register as low as 74 dB(A). That’s quiet enough for sensitive workspaces, and it reduces operator fatigue over long shifts. Quiet pumps usually mean smooth internal mechanics, which also means longer lifespan.

Trusted in Real-World RO Projects

From seawater desalination to high-pressure mist firefighting, ROHRE pumps have delivered years of stable, low-failure performance for OEMs and integrators in over 40 countries. You’re not taking a risk — you’re joining a proven track record.

Modular Design Saves You Time

Need to swap a pump, upgrade a part, or shorten delivery time? Our standardized modular parts make installation and servicing fast, flexible, and hassle-free. That’s especially valuable in tight project timelines or when local maintenance matters.

We’re Not Just Selling Pumps — We’re Building Partnerships

If you’re bussiness on RO systems and relying on big-name pump brands, you’ve probably faced at least one of these:

Long delivery times that throw off your project schedule

Slow or no technical support when issues arise

High prices that squeeze your project margin

Rigid product lines with little flexibility or customization

Spare parts that take months to arrive

Sound familiar?

We built Rohre pumps for engineering companies just like yours — who need trusted performance, but also flexibility, speed, and cost efficiency.

Why System Owners Switch to Rohre

When our customers make the switch, they often tell us:

“We didn’t lose performance — we just gained support, speed, and savings.”

Here’s what you can expect:

Fast, Flexible Selection

We don’t just send you a catalog. Our engineers help you choose the right pump model based on your flow rate, pressure, fluid type, and system layout — ensuring a perfect match from day one. You get:

• Technical data sheets
• CAD drawings
• System integration advice
• One-on-one technical support

We speak the language of system engineers.

Real OEM Support

Whether you’re building a new skid or retrofitting an old system, we make your job easier:

• 3D models for direct integration
• Interface diagrams and control pairing
• Matching with your preferred motors and drives
• Modular build for easy maintenance and fast spares

You won’t need to adjust your design to fit our pump — we adjust to fit your system.

Hands-On Training for Your Team

We offer onsite or online training for your installation and maintenance team — because a good pump is only good if it’s installed and used right. We help your team avoid common mistakes and reduce commissioning time.

Rohre = Quality Without the Overhead

Our HPH/HPS axial piston high-pressure pumps are already replacing Danfoss and similar brands in:

• Seawater RO skids
• Ultrapure water systems
• High-pressure ZLD units
• Water mist fire protection packages

We give you the performance you expect — at a cost that lets you stay competitive. And we deliver in weeks, not months

Want to Try a Sample Pump?

Or need help quoting your next system?

Let’s start a conversation: marketing@cncontrolvalve.com
Visit us at: rohrepumps.com

You don’t have to sacrifice quality to gain control over cost, delivery, and support. With Rohre, you get both.

Axial piston high-pressure pumps are at the heart of various critical systems, from water mist and reverse osmosis (RO) systems to desalination plants and industrial hydraulics.

For engineers and procurement managers, selecting the right pump manufacturer is a vital decision that impacts system performance, operational costs, and long-term reliability. With several globally recognized brands dominating the market, understanding their unique strengths and offerings is key to making an informed choice.

In this article, we will introduce the Top 5 Axial Piston High-Pressure Pump Manufacturers—their core applications, standout features, and why they are trusted by industries worldwide. Whether you are designing advanced hydraulic systems or sourcing for high-pressure applications, this guide will help you identify the best solution tailored to your needs.

Top 5 Axial Piston High Pressure Pump Manufacturers

1. Danfoss

Danfoss is a renowned leader in the realm of axial piston high-pressure pumps, recognized for its innovative solutions and superior quality. With a strong commitment to engineering excellence, Danfoss has established a solid reputation across various global industries.

Website: www.danfoss.com

Key Applications

• Reverse Osmosis (RO) Systems: For seawater desalination and industrial water treatment.
• Ultrapure Water Systems: Used in semiconductor and pharmaceutical industries.
• Industrial Hydraulics: Powering heavy machinery and hydraulic systems.

Technical Highlights

• High-efficiency designs supporting up to 450 bar pressure.
• Corrosion-resistant materials, ensuring durability in long-term operations.

2. Rohre Pumps

Rohre Pumps, a high-pressure pump brand under the THINKTANK Group, specializes exclusively in axial piston high-pressure pumps. For years, we have been an OEM supplier for leading fire fighting system and desalination system brands, delivering pumps with stable quality and exceptional performance. Compared to major brands like Danfoss, Rohre Pumps offers significant cost savings for users of water mist systems and seawater desalination systems, along with lower maintenance costs, maximizing profitability for our customers. Most importantly, Rohre Pumps ensures short delivery times and provides customizable solutions tailored to meet specific customer needs.

Website: https://rohrepumps.com/

Key Applications

• Water Mist Systems: Fire suppression, cooling, and dust control applications.
• Seawater Desalination: Specially designed for high-salinity environments with superior corrosion resistance.
• High-Pressure Cleaning: For industrial equipment and pipeline cleaning.

Technical Highlights

• Flexible customization to meet specific operating conditions.
• Ultra-high-pressure models designed for extreme environments.

3. Grundfos

Grundfos is a global leader in advanced pump solutions and water technology. Founded in Denmark in 1945, the company specializes in high-quality pumps and systems for applications like water supply, wastewater management, heating, cooling, and industrial processes. Known for innovation, energy efficiency, and reliability, Grundfos serves customers in residential, commercial, and industrial sectors worldwide.

Website: www.grundfos.com

Key Applications

• Building Water Supply and Boosting: For residential and commercial buildings.
• Industrial Liquid Transfer: Covering cooling, heating, and cleaning applications.
• Food & Beverage Industry: Hygienic designs meeting strict standards.

Technical Highlights

• Focus on energy efficiency and sustainability.
• Comprehensive product range from standard pumps to tailored solutions.

4. KSB Pumps

KSB is a globally renowned manufacturer of pumps, valves, and related systems with over 150 years of expertise. Headquartered in Germany, KSB serves a wide range of industries, including water management, energy, and industrial applications.

Website: www.ksb.com

Key Applications

• Industrial Water Management: For cooling water circulation, boiler feed, and wastewater systems.
• Energy Sector: High-pressure solutions for power plants, including thermal and nuclear facilities.
• Desalination Plants: Specialized pumps for reverse osmosis and high-pressure seawater applications.

Technical Highlights

• High-efficiency designs that reduce energy consumption in large-scale operations.
• Robust materials and advanced sealing technologies to handle corrosive or abrasive fluids.
• Global service network providing technical support and maintenance.

5. Water Hydraulics UK

Water Hydraulics UK is a specialized manufacturer focusing on innovative water-powered hydraulic solutions. Headquartered in the United Kingdom, the company is known for its eco-friendly approach, offering high-performance pumps that use water instead of traditional hydraulic oil.

Website: www.waterhydraulics.co.uk

Key Applications:

• Marine Industry: High-pressure pumps designed for ships and offshore operations.
• Environmental Sector: Specializing in water-powered pumps to reduce pollution.
• Laboratories and R&D: Low-noise, high-precision pumps for sensitive environments.

Technical Highlights:

• Innovative water-based pumps avoiding traditional hydraulic oil pollution.
• High-pressure, low-noise design for eco-sensitive applications.

Final Thoughts

Choosing the right high-pressure axial piston pump is crucial for ensuring the efficiency and reliability of your systems. Each of the top manufacturers—Danfoss, Rohre Pumps, Grundfos, KSB, and Water Hydraulics UK—offers unique strengths tailored to specific industries and applications. Whether you need energy efficiency, customization, or eco-friendly solutions, this guide provides insights to help you make an informed decision.

If you want to find the most cost-effective high-pressure axial piston pump for your water mist system or reverse osmosis desalination system, Rohre pumps is definitely your best choice.

Fire safety is very important in industrial settings and key facilities. High-pressure water mist systems provide effective fire suppression while being environmentally friendly, making them ideal for containerized fire pump applications. In this article, we will explain how our high-pressure water mist pump works in containerized fire pump units, what a containerized fire pump unit is, why it’s used, and the benefits of using this type of firefighting system.

Key Components and Functionality of High-Pressure Water Mist Systems

High-pressure water mist fire suppression systems comprise several essential components:

• High-Pressure Pump Unit: Typically constructed from stainless steel with nine-piston designs to deliver consistent, high-pressure water flow.
• Water Mist Nozzles: Specialized nozzles release fine water droplets that quickly cool flames and suppress fire by displacing oxygen.
• Zonal Control Valve Sets: Manage water flow to specific areas, ensuring precise fire suppression.
• Fire Control Systems: Integrated with multiple operation modes—automatic, manual, remote, and emergency—to provide adaptability for various scenarios.
• Stainless Steel Piping: Durable and corrosion-resistant to ensure long-lasting and reliable operation.

Water Mist High Pressure Pump System Principle

High-pressure water mist systems suppress fire through four main mechanisms:

• Cooling: Fine droplets rapidly lower the temperature of flames.
• Oxygen Displacement: Evaporation of mist reduces oxygen in the vicinity of the fire.
• Radiant Heat Reduction: A barrier of mist minimizes the spread of heat to surrounding areas.
• Localized Application: Zonal control ensures water is directed only where needed, minimizing waste.

Technical Advantage: High-pressure water mist systems are ideal for environments where sensitive equipment or open spaces require both precision and minimal water usage.

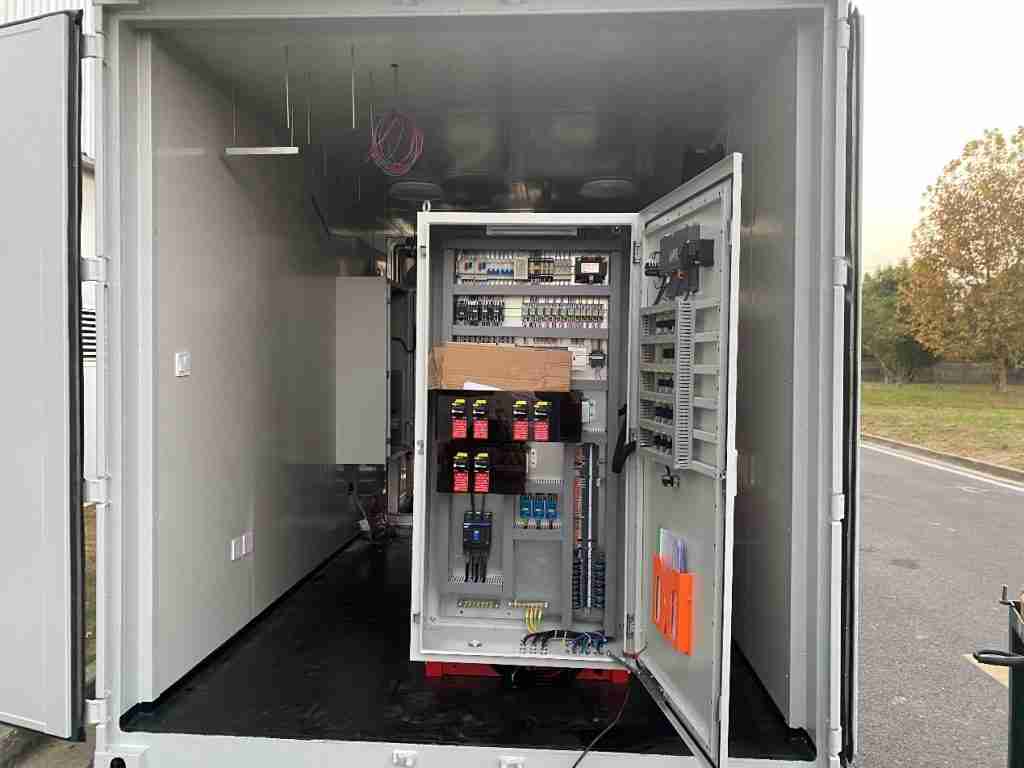

Containerized Fire Pump Units: System Operation Principles

The containerized fire pump unit is designed to operate efficiently under four distinct control modes: automatic, manual, remote control, and emergency operation. These modes provide flexibility and reliability in various scenarios to ensure optimal fire protection.

Automatic Mode

The fire alarm panel receives a signal from the first detector in the protected area, triggering the fire alarm bell.
When a second detector confirms the fire, the system activates the sound and light alarms and sends a fire confirmation signal.
The system then disconnects the power from the transformer breakers, opens the corresponding zonal control valve, and starts the main pump to release water mist.
A pressure switch in the zonal valve assembly provides feedback to confirm spray activation, and the system illuminates the relevant spray indicator light.

Manual Mode

Operators at the site manually confirm the fire and press the fire alarm controller’s button for the designated area.
The system disconnects the transformer breakers, opens the zonal control valve, and triggers the main pump to release water mist.
Similar to automatic mode, the pressure switch provides feedback, and the system lights up the spray indicator.

Manual operation can be performed at two locations:

a. The fire alarm controller.
b. The water mist zonal control valve box.

Remote Emergency Operation

When automatic systems fail or fire detectors are inoperative, monitoring center personnel visually confirm the fire.
After ensuring the transformer is de-energized, authorized personnel activate the corresponding zone’s start button and override the power lockout switch using the fire safety subsystem.
The system remotely initiates the fire suppression sequence.

On-Site Mechanical Emergency Operation

If all other modes fail, on-site personnel manually operate the mechanical emergency switch on the zonal control valve.
This opens the valve, reduces pipeline pressure, and automatically starts the main pump to spray water mist for fire suppression.

Operational Safeguards

The system includes a mode selector switch for choosing between automatic and manual control, ensuring adaptability.
To prevent accidental operation, manual or remote actions require at least two sequential steps to activate the system.

This control design keeps the containerized fire pump unit working in different situations, ensuring a dependable fire protection system for important industrial infrastructure.

Unique Advantages of Containerized Fire Pump Stations

The containerized design of these fire suppression systems offers the following benefits:

Rapid Deployment

Pre-assembled in standard shipping containers, enabling quick transportation and on-site installation.
Comprehensive Protection: Equipped with U-shaped distribution pipes and nozzles on transformer surfaces, instantly shielding equipment from fire hazards.

Space Efficiency

Compact and modular, these systems are suitable for environments with limited space.

Water Mist Fire System For Containerized Fire Pump Set Practical Case Studies

Case Study 1 – Substation

In a substation, a high-pressure water mist system was deployed to protect oil-filled transformers. The system successfully mitigated risks of fire due to short circuits under extreme heat conditions, reducing damage to surrounding equipment.

Case Study 2 – Chemical Plant

A chemical plant integrated a containerized system to safeguard its hazardous material storage areas. The compact design enabled installation without disrupting operations, while its rapid response capabilities prevented fire spread during an incident.

Applications and Safety Standards

High-pressure water mist systems conform to NFPA 750 standards and find widespread use in:

Power and Substations:

Protection for oil-filled transformers and electrical equipment.

Petrochemical Industries

Fire suppression in high-temperature and high-risk environments.

Warehousing and Logistics

Safeguarding hazardous goods storage facilities

High-Pressure Water Mist Systems vs. Traditional Fire Suppression Methods

Common Questions

1. What type of pump is used in water mist systems?

High-pressure water mist systems commonly use:

• Electric motor pump units
• Hydraulic motor pump units
• Complete motorized pump assemblies

These pumps ensure precise delivery of water at pressures exceeding 500 psi for effective mist formation.

2. What are the disadvantages of a water mist system?

While water mist systems offer numerous benefits, they have certain limitations:

• Shielded Fire Inefficiency: Less effective against fires obstructed by barriers.
• Complex Piping Configurations: Installation requires precise engineering.
• Potential Water Damage: Though minimal, water can harm sensitive equipment.
• Small Fires in Enclosures: Requires sufficient heat to vaporize the mist, limiting its effectiveness for small, contained fires.

3. What is the maximum Test pressure for a fire pump?

All newly installed systems are required to undergo hydrostatic testing to ensure their integrity and reliability. This testing must be conducted at a minimum pressure of 200 psi (13.8 bar) or at 50 psi (3.4 bar) above the maximum discharge pressure, depending on which of these values is greater, specifically at the fire pump discharge flange. This procedure is essential for confirming that the system can safely withstand its operational conditions and to prevent any potential failures.

4. What is a water mist system as per NFPA?

Per NFPA 750, water mist fire protection systems extinguish fires by:

• Displacing oxygen through vaporization
• Cooling flames
• Reducing radiant heat

Conclusion

Rohre pumps are the ideal choice for high-pressure water mist systems, delivering the reliability and efficiency required for industrial fire safety. These systems are widely used in containerized fire pump stations, making them perfect for engineers, procurement managers, and fire safety professionals seeking robust solutions for critical infrastructure. If you are planning to upgrade or design your fire protection system, contact our expert team today for customized solutions tailored to your operational needs and optimized costs.

What is TDH?

TDH (Total Dynamic Head) is a critical metric in pump system performance, expressed as the height of a water column (in feet or meters). It represents the total energy a pump must overcome to move fluid effectively from one point to another. TDH consists of the following components:

Components of TDH

Static Head

The vertical height difference between the pump inlet and outlet.

Friction Loss

Energy loss caused by friction as fluid flows through pipes, valves, and fittings.

Pressure Head

Additional energy required to overcome pressure differences in the system.

Velocity Head:

Energy associated with the fluid's velocity, often negligible in smaller systems.

The general formula for TDH is:

TDH = H_static + H_friction + H_pressure + H_velocity

When calculating TDH from PSI, the focus is on Pressure Head, given by:

H_pressure = PSI × 2.31

When to Use This Formula?

Pump Selection

Determine if a pump can deliver the required head for a specific application.

System Design

Analyze the energy losses in a pipe network to ensure appropriate pipe size, valves, and fittings.

Troubleshooting

Diagnose performance issues by measuring pressure and calculating actual TDH.

Water Treatment and Irrigation

Design systems involving pump stations, such as agricultural irrigation or wastewater treatment.

Example Applications

• Building Water Supply: Calculating the head required to pump water from a ground-level pump to the top floor of a high-rise building.
• Industrial Processes: Ensuring sufficient energy to move chemicals or other fluids through a processing plant.
  Swimming Pool Circulation: Verifying that the pump can handle friction and height differences in the system.

Water mist fire fighting systems are increasingly used due to their efficiency, eco-friendliness, and safety. As a critical component of these systems, Rohre high-pressure pumps deliver exceptional performance with low energy consumption and outstanding reliability. This white paper explores the technical principles, product features, and real-world applications of Rohre pumps in water mist fire fighting systems.

What is Water Mist?

Water mist refers to ultra-fine water droplets that meet specific size criteria under the system’s minimum design working pressure. Specifically:

• The droplet diameter, Dv0.50, representing the size below which 50% of the total liquid volume exists, must be less than 200 μm.
• The droplet diameter, Dv0.99, representing the size below which 99% of the total liquid volume exists, must be less than 400 μm.

These fine droplets are formed by atomizing water through high-pressure nozzles, producing a dense mist that behaves differently from conventional water-based fire suppression systems. The small droplet size enhances heat absorption and evaporation efficiency, enabling effective fire suppression with minimal water usage.

What is a Water Mist Fire Fighting System?

A water mist fire fighting system is a comprehensive fire suppression system composed of multiple integrated components working together to deliver effective and efficient fire protection. The primary components include:

• Water Storage Unit: Supplies the necessary volume of water for the system’s operation.
• Driving Unit (Pressure Pump Set): Generates the required high pressure to atomize water into fine droplets.
• Zonal Control Valve Groups: Regulate the flow of water to specific areas or zones based on the fire’s location.
• System Piping Network: Distributes water to the nozzles efficiently.
• Water Mist Nozzles: Atomize water into ultra-fine droplets, creating the mist.
• Control Devices: Manage the system’s operation and integration with other fire protection systems.
• Automatic Fire Detection and Alarm Systems: Detect fires early and activate the water mist system.

This integrated approach ensures rapid response to fires, efficient suppression, and minimal damage to protected areas and equipment.

Water Mist Fire Fighting System Working Principle

Water mist fire fighting systems rely on multiple physical and chemical processes to suppress fires effectively and efficiently. The core principles include rapid heat absorption, oxygen displacement, radiant heat blockage, and smoke absorption.

1. Efficient Heat Absorption — Rapid Cooling

Water mist consists of highly concentrated fine droplets that quickly absorb heat from the fire’s surface and surrounding air.

• This cooling effect lowers the temperature of combustible materials, halts fire propagation, and extinguishes flames in a short period.
• The surface-area-to-volume ratio of water mist is tens of thousands of times higher than conventional water systems.
• When the mist droplets evaporate, they absorb large amounts of heat, leading to a rapid temperature drop in the combustion zone.

2. Rapid Evaporation — Oxygen Displacement

When water mist enters the fire zone and heats up, it undergoes rapid vaporization, expanding into steam:

• Water vapor expands up to 1,680 times its original volume during the evaporation process.
• This expansion displaces oxygen in the fire environment, limiting its availability to sustain combustion.
• The oxygen concentration around the flame drops to levels insufficient for continued burning, causing the fire to suffocate.

Radiant Heat Blockage — Suppressing Fire Spread

Water mist forms a dense vapor layer within the fire area that effectively blocks radiant heat:

• Radiant heat from flames, embers, and smoke particles is absorbed and scattered by the mist.
• This prevents heat transfer to adjacent combustibles and surrounding structures, reducing the likelihood of fire spread.
• By isolating the fire source, water mist systems protect human life and minimize property damage.

Smoke Absorption and Hazard Mitigation

In addition to extinguishing flames, water mist systems interact with smoke and toxic particles:

• Fine water droplets bind to smoke particles, increasing their mass and causing them to settle rapidly.
• This reduces airborne particulate matter, improves air quality, and mitigates health risks from toxic gases such as CO and HCl.
• By suppressing smoke, water mist systems also improve visibility and facilitate safe evacuation during fire incidents.

Types of Water Mist Fire Fighting Systems

Water mist fire fighting systems are categorized based on their activation and operational principles. These systems offer tailored fire suppression solutions across various applications.

Closed Wet-Pipe Water Mist System

In the ready-to-operate state, the piping is kept pressurized with water supplied by a fire water tank or pressure-maintaining pump.

• When a fire occurs, the thermal element in the closed water mist nozzle activates due to rising hot air.
• The nozzle opens, releasing fine water mist into the fire zone.
• At the same time, water flows through the previously static pipes, triggering the signal feedback device.
• A signal is sent to the fire alarm control panel, indicating water mist activation in the specific zone.

Closed Pre-Action Water Mist System

In the standby state, water is maintained under pressure up to the inlet of the zonal control valve, while the outlet side of the piping remains filled with low-pressure gas.

• During a fire, fire detectors installed within the protected area detect the incident and send an alarm signal.
• After verification by the fire alarm controller, the zonal control valve is triggered automatically.
• Water displaces the gas in the downstream piping, converting the system into a wet-pipe system.
• Once the thermal element in the nozzles activates, fine water mist is discharged immediately, ensuring swift fire suppression.

Open Water Mist System

In this system, the piping network and nozzles are open, and activation is initiated by a fire detection system.

• When a fire is detected, the fire alarm system sends signals to the alarm controller, simultaneously triggering visual and audible alarms.
• The controller issues commands to activate the zonal control valve and driving unit.
• Fine water mist is discharged through open nozzles, directly targeting the fire and surrounding area to extinguish flames efficiently.

Rohre High-Pressure Plunger Pumps are designed to serve high-pressure water mist systems with exceptional reliability and performance.

• Operating Pressure: Not less than 10 MPa (100 bar).
• Droplet Size: Ultra-fine mist with Dv0.99 < 100 μm, ensuring superior atomization and efficient fire suppression.

Cost Comparison High-Pressure Water Mist Systems VS. Other Fire Suppression Systems

When analyzing the cost-effectiveness of high-pressure water mist systems compared to other fire suppression methods, several key factors stand out: installation costs, maintenance, operational efficiency, and protection area.

Fire Suppression System Comparison Table

Conclusion

Rohre has extensive experience in delivering axial piston high-pressure pumps for water mist fire fighting systems. Our pumps ensure reliable performance, precise pressure control, and efficient fire suppression, making them the ideal solution for protecting life and property.

Discover how Rohre pumps can enhance your water mist fire fighting systems. Reach out to our team for expert advice, technical support, or a tailored solution to meet your project needs.

In modern industrial and firefighting applications, high-pressure water mist systems are rapidly emerging as efficient and eco-friendly solutions. As the core component of these systems, the choice of a high-pressure pump directly impacts the system’s performance and reliability. Axial piston high-pressure pumps, with their oil-free lubrication, corrosion resistance, and high efficiency, have become a preferred choice for various high-pressure water mist applications, providing dependable support for industrial operations and safety measures.

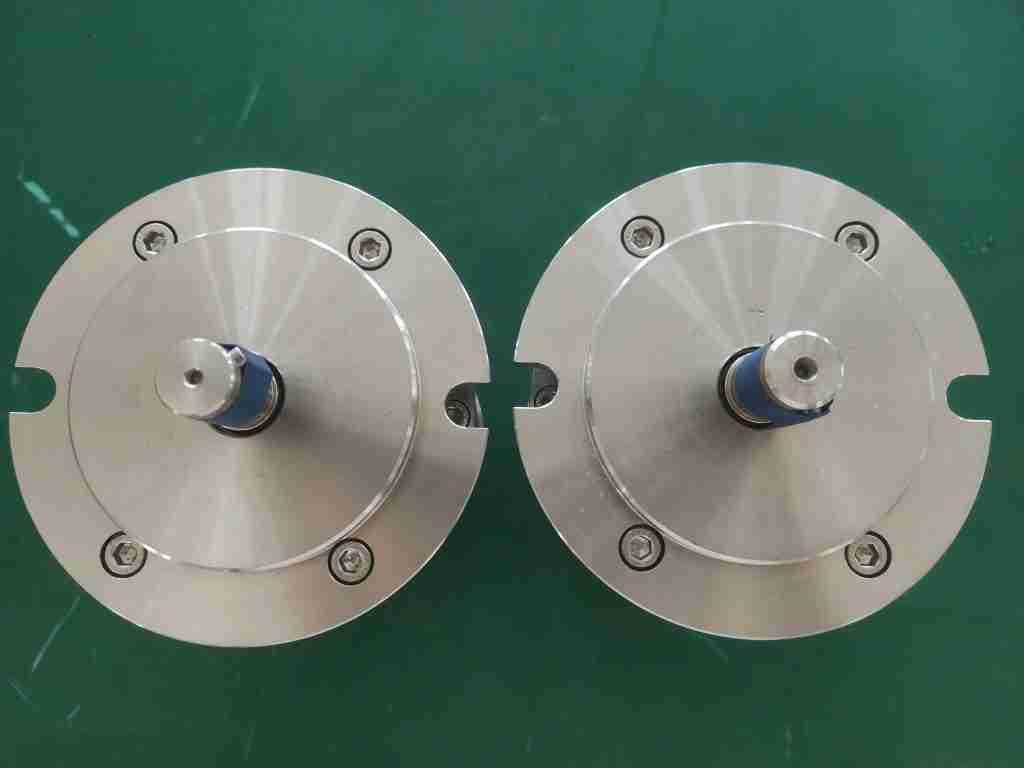

Features of Axial Piston High-Pressure Pumps

1. Oil-Free Lubrication Design

Axial piston pumps utilize water as a lubricant, eliminating the contamination risks associated with traditional oil-based systems. This ensures the purity of the output water, making them ideal for applications requiring high cleanliness, such as spray humidification or material separation.

2. High-Quality Materials

Constructed from materials like 2205/2507 duplex steel, 316L or 304 stainless steel, these pumps offer exceptional corrosion resistance and prolonged durability. Even in high-pressure and corrosive environments, they maintain stable performance.

3. High Efficiency and Low Maintenance

Axial piston pumps exhibit low pulsation characteristics and excellent mechanical efficiency. This enhances operational stability, reduces maintenance frequency, and lowers long-term operational costs.

Key Applications of Water Mist Pumps

Water Mist Firefighting Systems

High-pressure water mist systems use micron-sized water droplets to achieve rapid cooling and oxygen isolation. Axial piston pumps provide a continuous, stable high-pressure water supply, making them ideal for building fire protection and industrial fire safety.

High-Pressure Cleaning

For industrial equipment cleaning, the high-pressure capabilities of water mist pumps effectively remove stubborn contaminants. Their oil-free lubrication ensures the cleaning process is environmentally friendly.

Spray Humidification

In industries like textiles and electronics, spray humidification systems utilize high-pressure pumps to atomize water, ensuring uniform humidity levels while reducing static electricity and dust.

High-Pressure Leachate Reverse Osmosis

In landfill leachate treatment or industrial wastewater processes, high-pressure water mist pumps act as the core component of reverse osmosis systems, enabling efficient separation and purification of liquids under high pressure.

Material Separation and High-Pressure Water Supply

In sectors like food processing and pharmaceuticals, high-pressure pumps facilitate material separation or efficient water delivery under high pressure, achieving automation and process optimization.

Technical Advantages of Axial Piston Pumps

1. Environmental Benefits
The oil-free lubrication design completely eliminates cross-contamination risks between oil and water, providing an environmentally friendly solution for high-pressure systems.

2. Stability and Low Maintenance Costs
With a multi-piston design, axial piston pumps minimize pressure fluctuations during operation. This design enhances stability, extends the pump’s service life, and reduces maintenance frequency and costs.

3. Flexible Adaptability
The modular design of these pumps allows for easy installation, disassembly, and maintenance. Additionally, various configurations and models make them suitable for diverse application requirements.

Case Studies and Industrial Value

1. Applications in Water Mist Firefighting Systems
   In a high-rise building firefighting system, axial piston high-pressure pumps demonstrated rapid activation and efficient firefighting capabilities, significantly reducing fire damage during critical moments. Moreover, water mist systems consume only 10% of the water used by traditional sprinkler systems, making them highly resource-efficient.
2. Typical Scenarios in Other High-Pressure Applications
   In industrial cleaning and spray humidification, axial piston pumps provide enhanced operational efficiency through high-pressure boosting while meeting environmental and energy-saving demands. For instance, in electronics manufacturing, spray humidification prevents static electricity risks, making water mist pumps essential for maintaining optimal conditions.

Conclusion and Future Outlook

Axial piston high-pressure pumps, known for their efficiency, stability, and eco-friendliness, play a vital role in water mist pump systems. Looking ahead, with continuous technological advancements, high-pressure water mist pumps are expected to find deeper and broader applications across industries. They not only improve operational efficiency but also serve as critical components in promoting green and sustainable development. If you are interested in details of axial piston high pressure pumps, you can feel free to download the catalogs here.

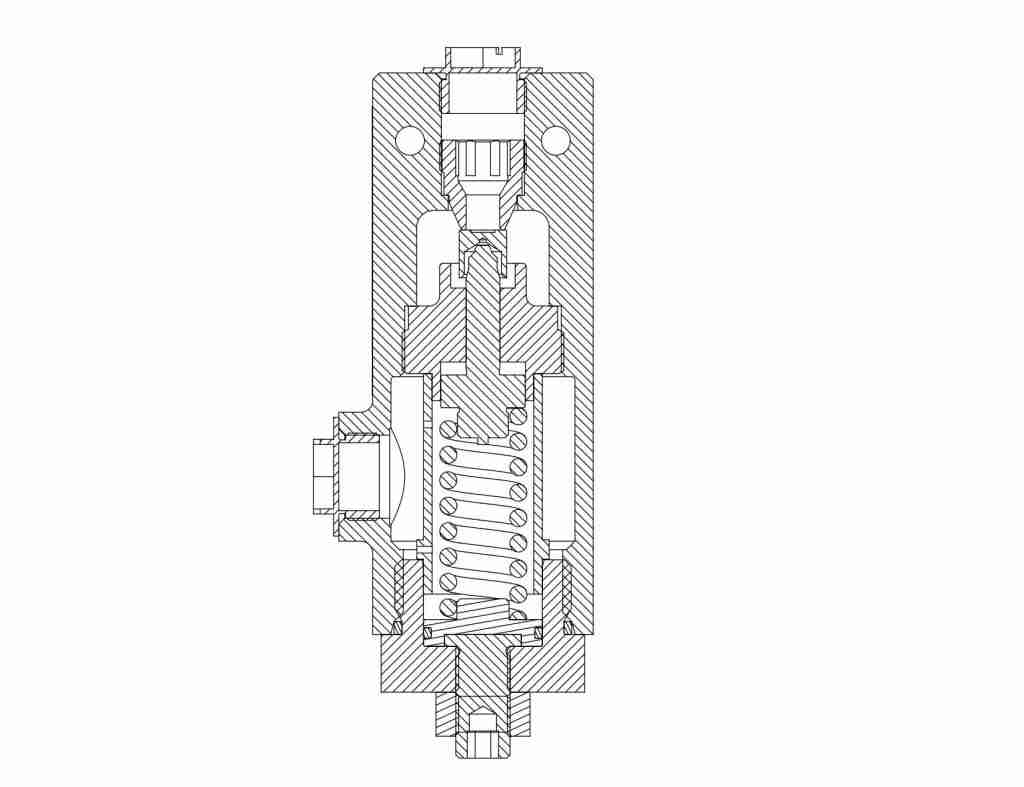

Pressure relief valves play a critical role in protecting axial piston high-pressure pumps and associated systems by ensuring safe and reliable operation under high-pressure conditions. These valves are essential for applications requiring precise pressure control, making them widely used in seawater desalination projects, water mist firefighting systems, high-pressure dust suppression systems, reverse osmosis plants, and other water treatment equipment. By automatically releasing excess pressure, they safeguard equipment from potential damage, enhance operational efficiency, and prolong system lifespan. THINKTANK’s pressure relief valves offer robust performance, precision, and durability, making them an ideal choice for demanding industrial environments.

What Is the Purpose of a Relief Valve on a Water Pump?

A relief valve is a safety device engineered to open automatically when internal pressures exceed predetermined limits. By discharging excess fluid, it helps maintain a stable environment within your pipelines. It is about ensuring that your pump—particularly if it is a positive displacement type—does not generate unsafe pressures that jeopardize system integrity.

Why Is a Pressure Relief Valve Needed in a Pump?

Relief valves are required because certain pump types, especially positive displacement pumps, can continue generating pressure even when discharge lines are closed. It must be recognized that water is incompressible. In these scenarios, if the fluid has nowhere to go, immense pressure can build rapidly, threatening pump components, seals, and associated piping. By installing a relief valve, your system is safeguarded against such unexpected surges, reducing the risk of downtime, equipment damage, and potential safety hazards.

What Happens If a Pump Does Not Have a Relief Valve?

Without a relief valve, overpressurization scenarios become more likely. Pressure spikes can cause catastrophic failures, from seal damage to cracked housings or burst pipes. In desalination projects, where consistent production of potable water is critical, sudden outages can impact operational targets, disrupt schedules, and cause unwelcome cost overruns.

Which Pumps Require a Relief Valve?

It should be understood that not all pumps are alike. Positive displacement pumps—such as piston, diaphragm, or gear pumps—differ significantly from centrifugal pumps. Positive displacement pumps deliver a fixed volume of fluid per revolution. If the discharge path is blocked, pressure continues to climb. Therefore, a relief valve is almost always required on these pumps. Centrifugal pumps, on the other hand, do not “trap” fluid in the same manner. Although pressure can rise, these pumps are designed to allow fluid to recirculate internally, thus limiting extreme overpressure situations. Nevertheless, adding a relief valve or similar protective devices on centrifugal systems can still provide extra operational safety, especially in sensitive desalination processes.

How Does a Relief Valve Protect the Pump?

Your relief valve protects the pump by ensuring that excessive hydraulic forces never reach critical limits. When the valve senses an overpressure condition, it opens automatically, channeling fluid away from the pump discharge line. By doing so, it prevents internal damage, reduces stress on mechanical components, and preserves crucial sealing surfaces. The pump’s internal parts are spared the wear and tear that would otherwise cut short service life and raise maintenance costs.

Where Should a Relief Valve Be Installed on a Pump System?

In most configurations, a relief valve is strategically placed on the discharge side of the pump, typically as close to the pump outlet as practical. By positioning it near the source of potential overpressure, the relief valve promptly responds to dangerous conditions. Integrating it directly into your system’s piping design allows for excess fluid to be released safely into a bypass line, return line, or a suitable reservoir. It is crucial that your engineering team or supplier guidelines be consulted to ensure compliance with industry standards and local regulations.

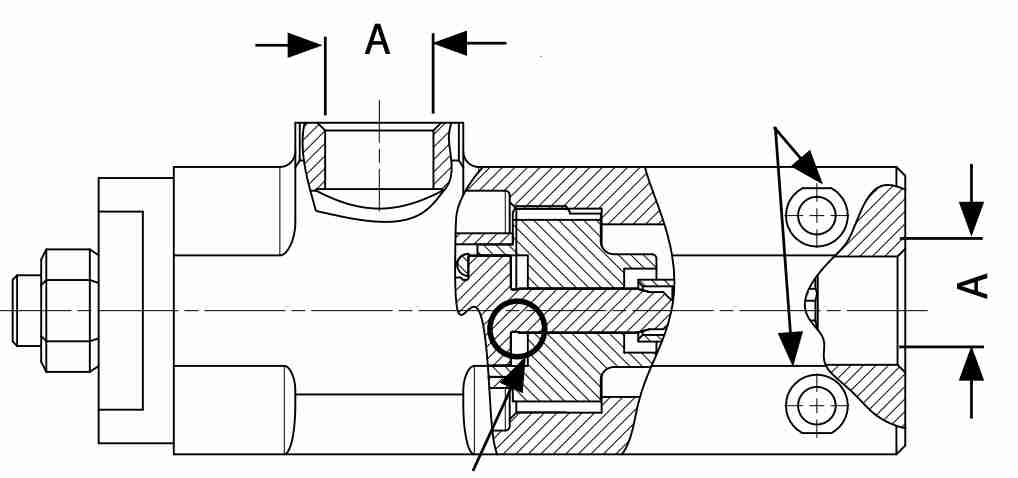

How Do You Select the Right Relief Valve for Your Water Pump?

Selecting the right relief valve involves understanding your system’s normal operating pressures, maximum allowable working pressure, flow rates, and fluid properties. Your chosen relief valve must be sized and rated correctly to handle the maximum expected flow and pressure conditions. Material compatibility is essential, especially in desalination environments where saltwater corrosion resistance is a major concern. By collaborating with experienced suppliers who specialize in desalination solutions, you ensure that your relief valve performs reliably and resists the harsh marine conditions characteristic of saltwater applications.

How Does a Relief Valve Improve Operational Efficiency?

A properly installed relief valve is not just about preventing catastrophic failures—it is also about optimizing efficiency. When pressures remain stable and predictable, pumps operate within their designated performance windows. Stable pressure conditions help your energy consumption remain controlled, your throughput remain consistent, and your water quality remain uncompromised. The valve’s presence leads to a more manageable process environment, potentially reducing the total cost of ownership over the long term.

Can a Relief Valve Help Extend Pump Service Life?

Yes. By continuously preventing harmful overpressure conditions, it is possible to extend your pump’s service life, reduce the frequency of maintenance interventions, and minimize expensive part replacements. When pumps run within safe operating parameters, components suffer less stress and fatigue. Over the lifespan of your desalination plant, the cost savings associated with fewer breakdowns and less downtime can be substantial. The return on investment becomes evident as your pumping system consistently meets project targets without major disruptions.

Is a Relief Valve Necessary in Desalination Applications?

Desalination processes, especially those relying on high-pressure reverse osmosis, place significant demands on pumps. High inlet pressures, corrosive saltwater, and continuous operation raise the stakes. In these conditions, installing a relief valve is more than a recommendation—it is a best practice. By preventing uncontrolled pressure spikes, you safeguard not only your pumps but also the delicate membranes and other expensive desalination system components. The result is higher uptime, better product water quality, and enhanced ROI.

Why Must a Relief Valve Be Properly Maintained?

A relief valve that is not properly maintained may fail to open under critical conditions or may leak unnecessarily, causing operational inefficiencies. Regular inspections, testing, and calibration are recommended so that valve springs, seals, and internal components function optimally. It is also crucial that corrosion and scaling be monitored, as these issues can impede proper valve operation in salt-laden environments. By working with trusted service partners, you ensure that your relief valves remain fit for duty, protecting your system round the clock.

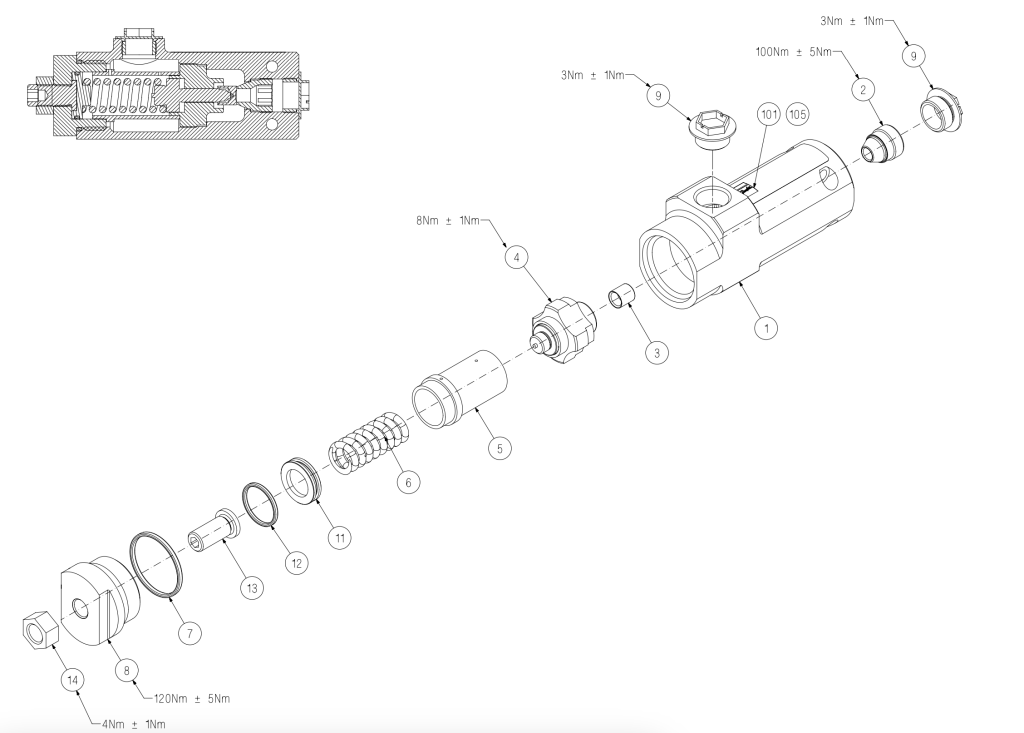

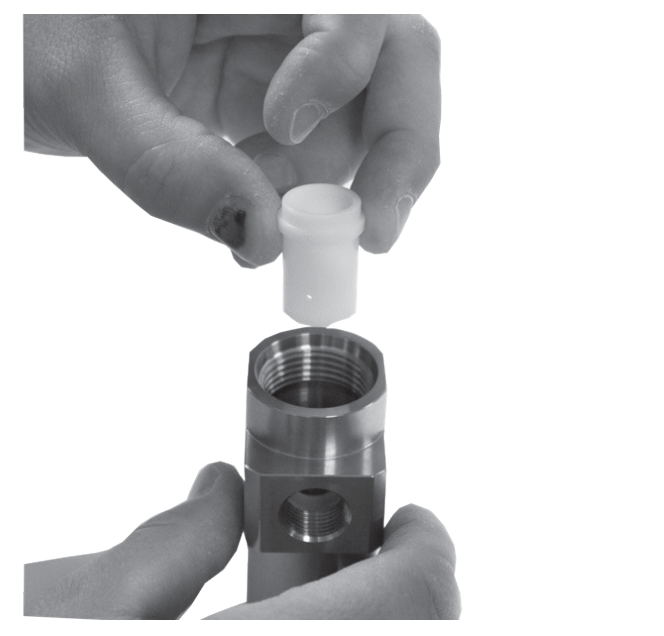

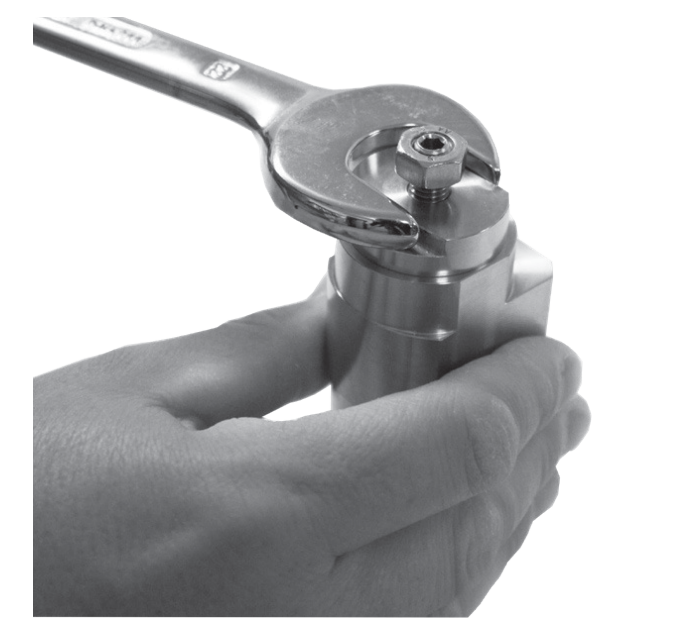

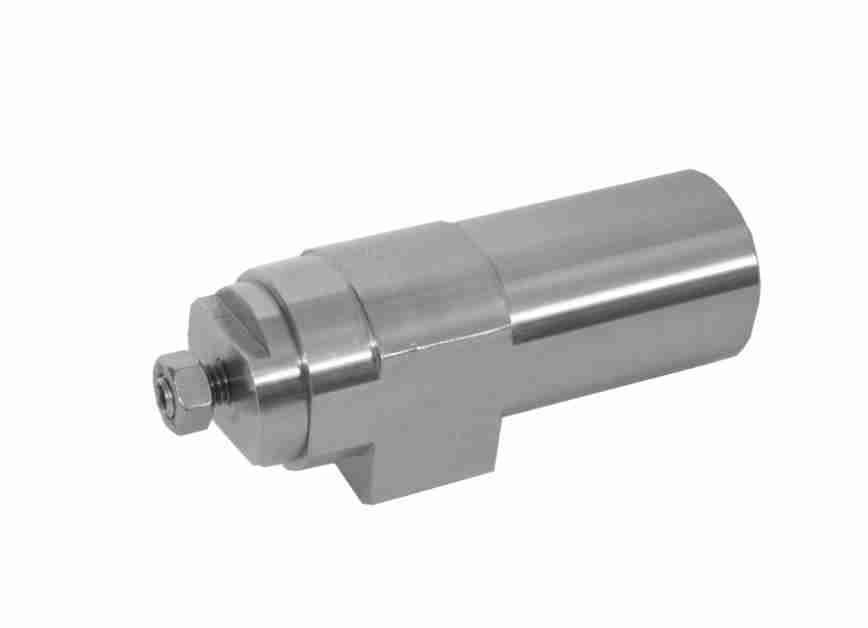

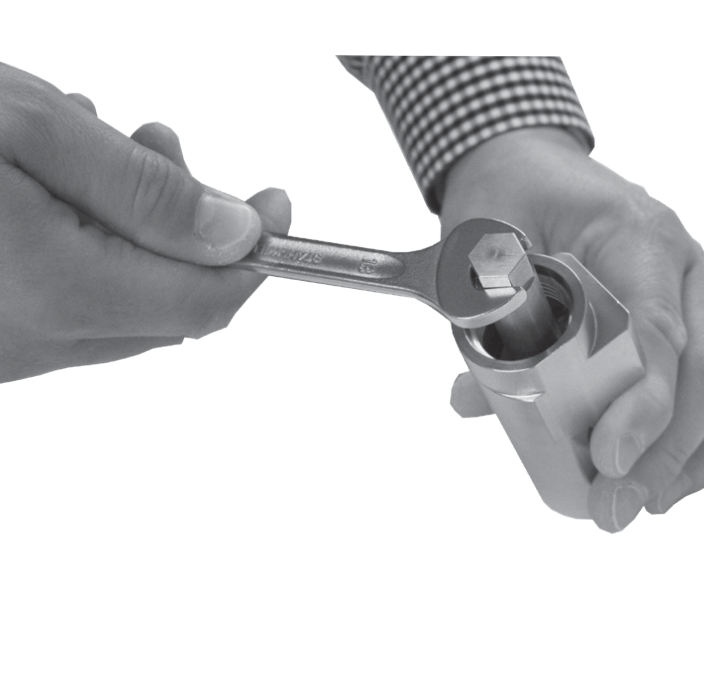

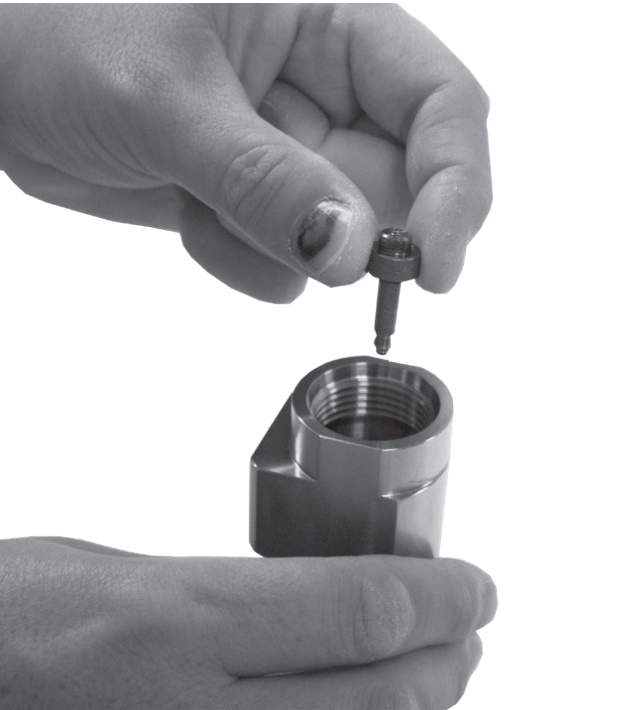

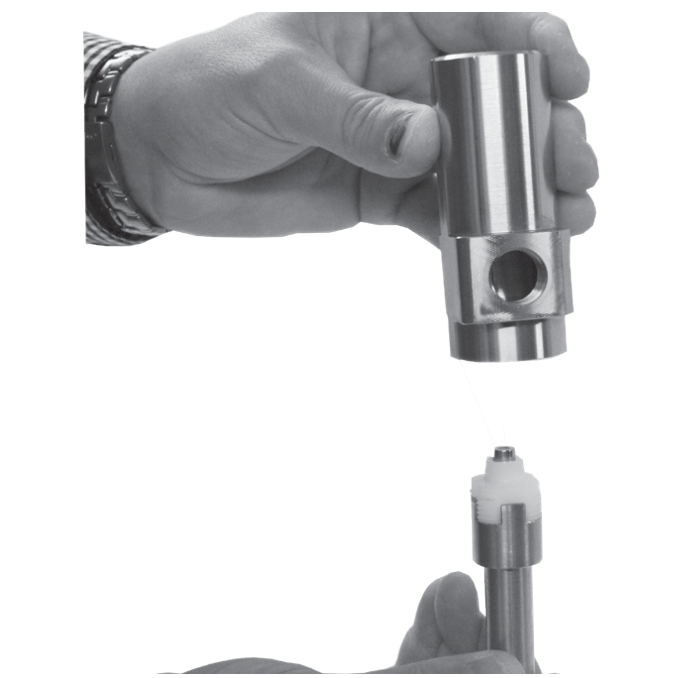

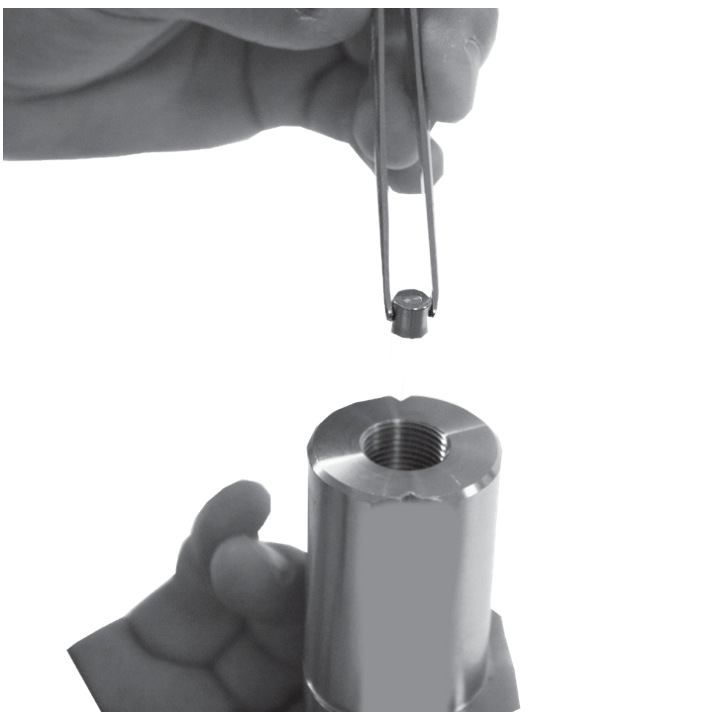

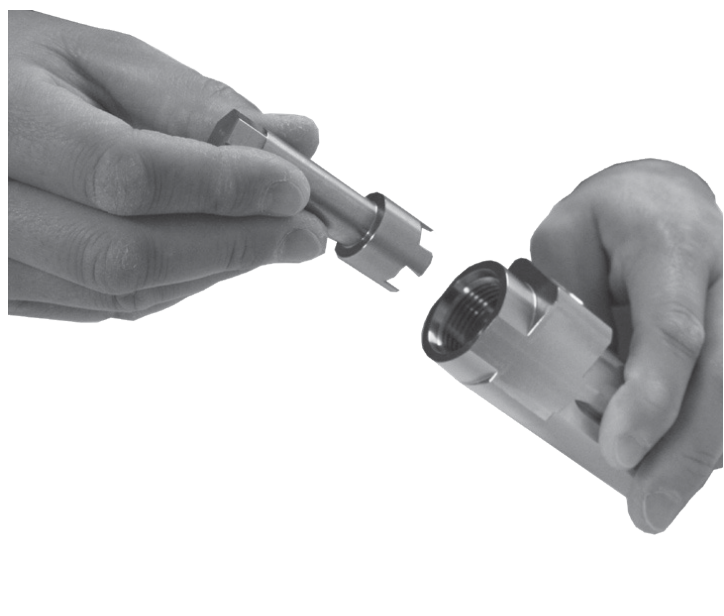

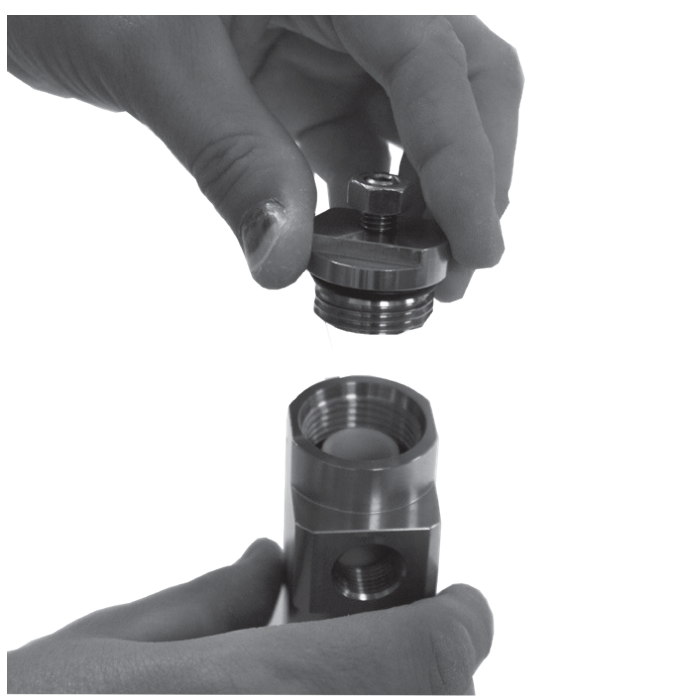

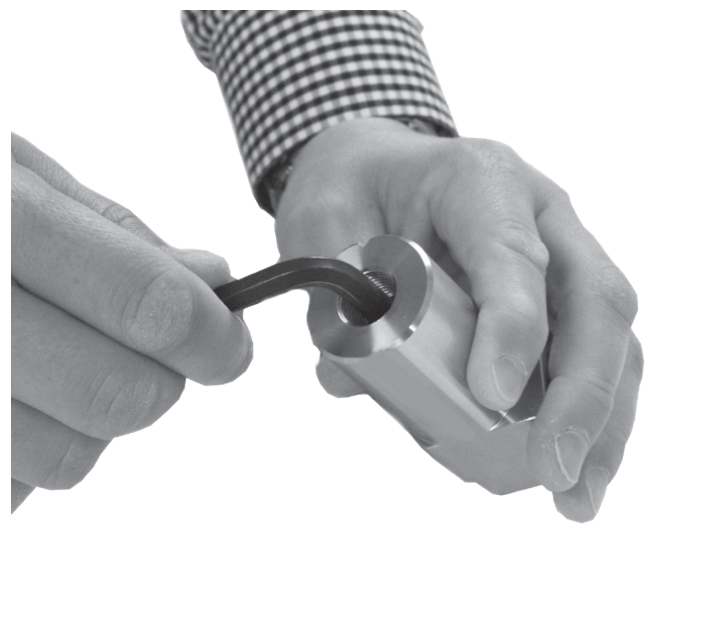

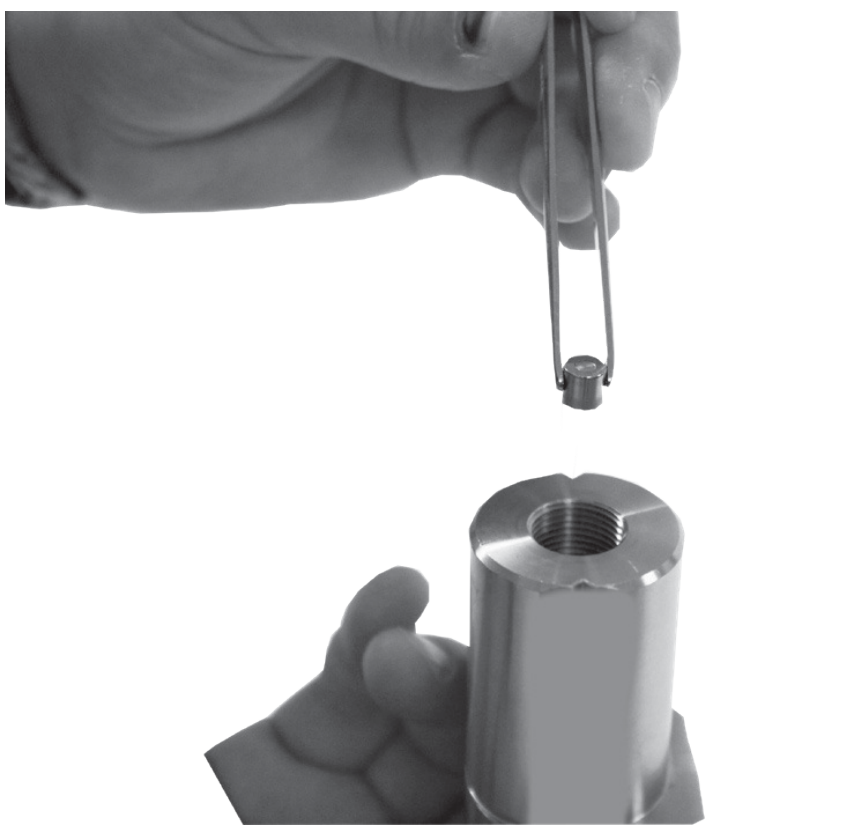

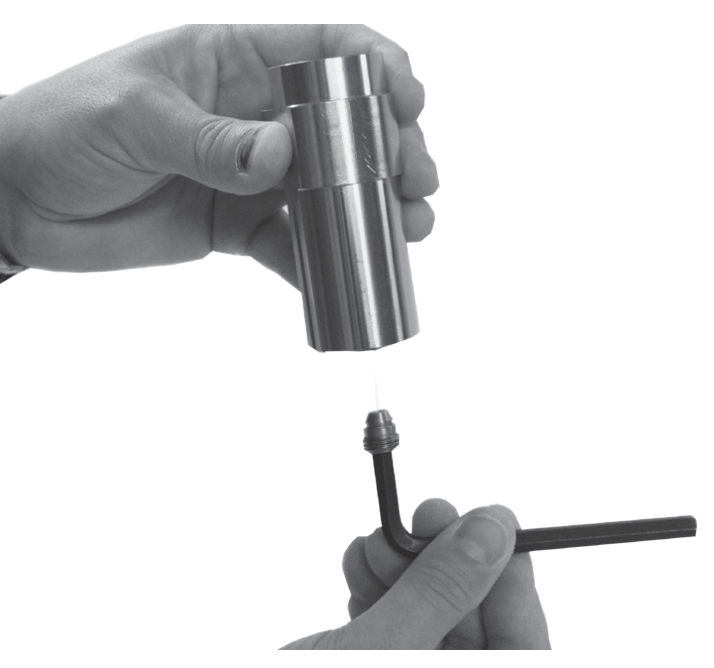

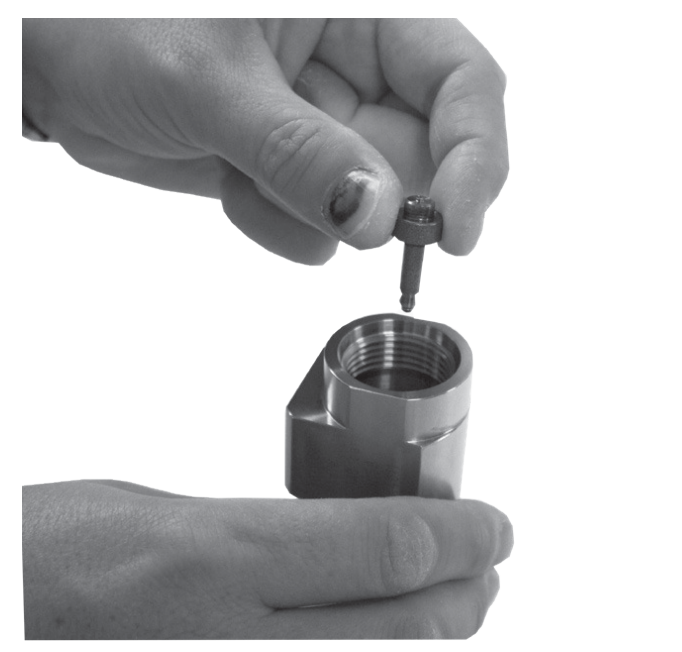

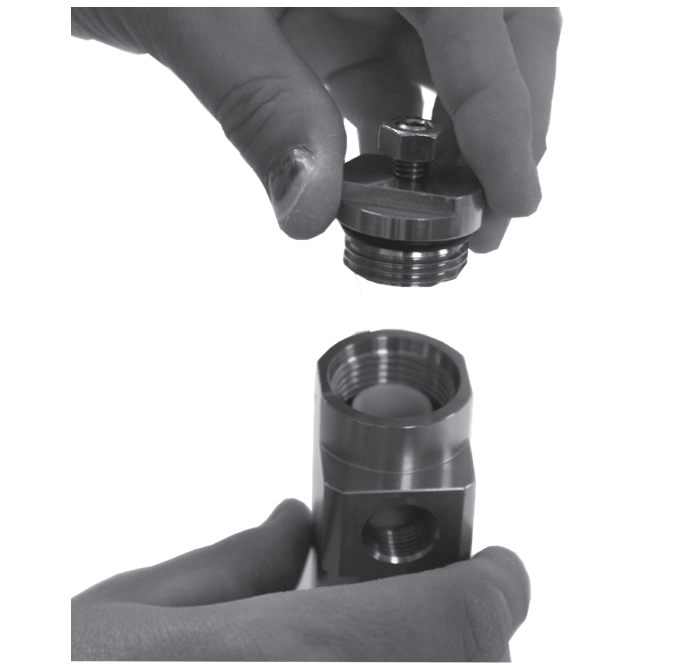

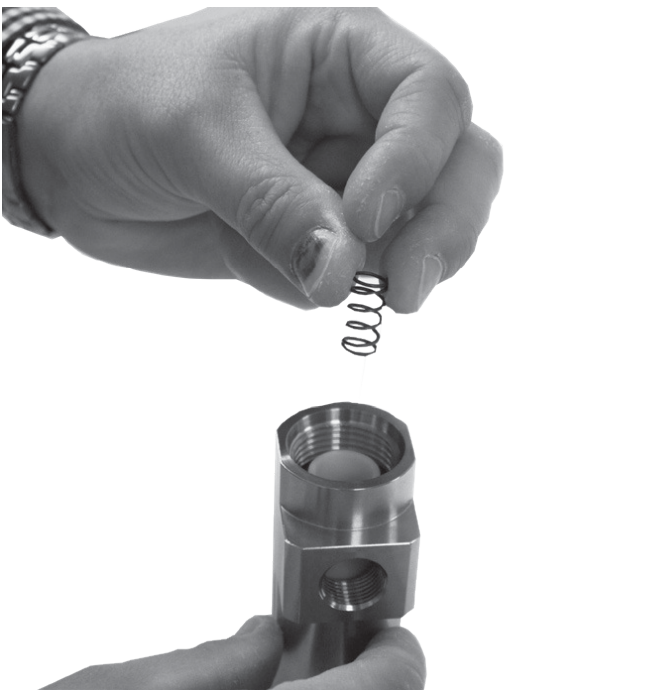

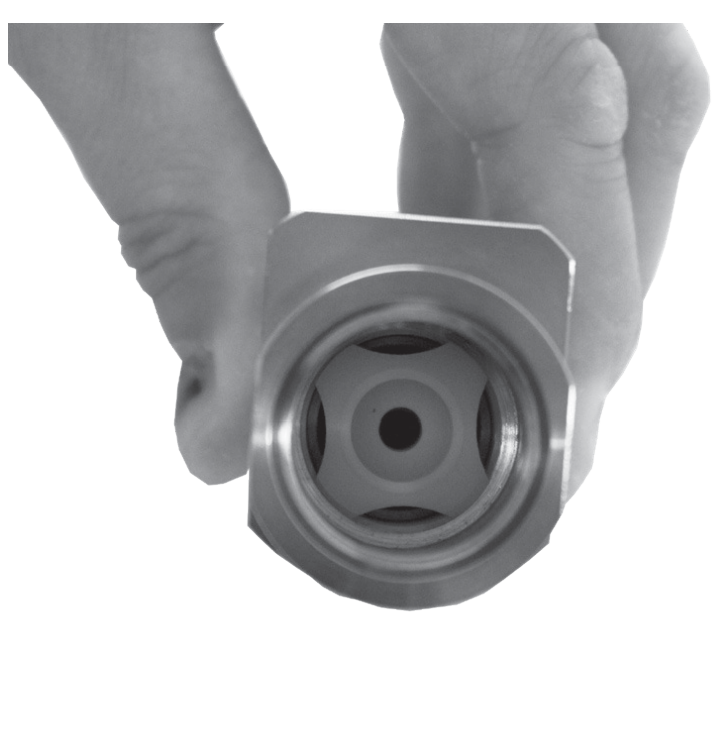

Learn How to Disassembly Pressure Relief Valve From Danforss

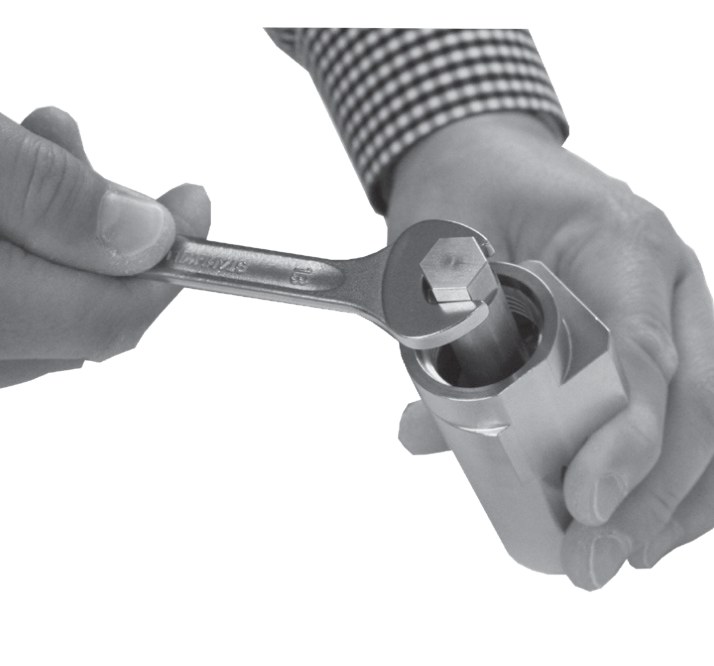

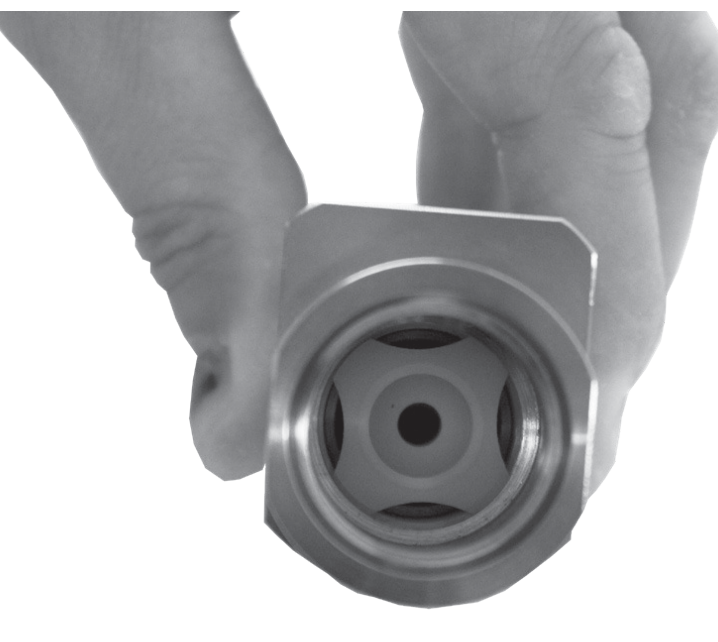

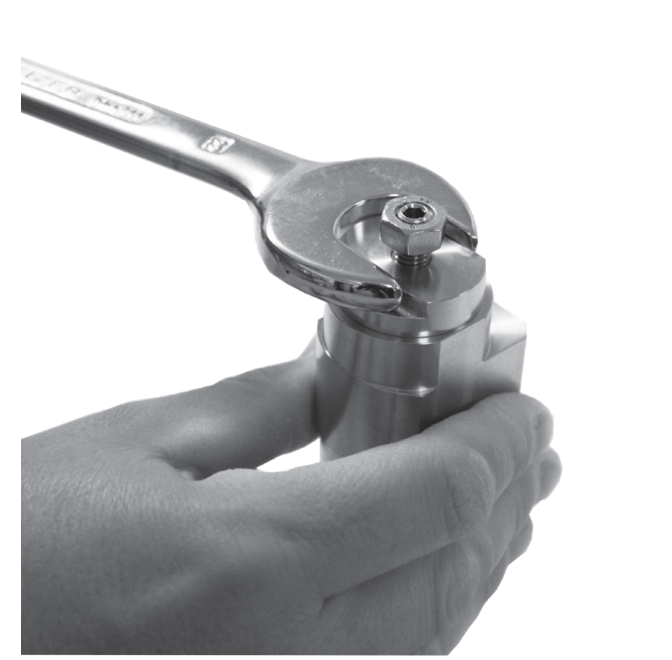

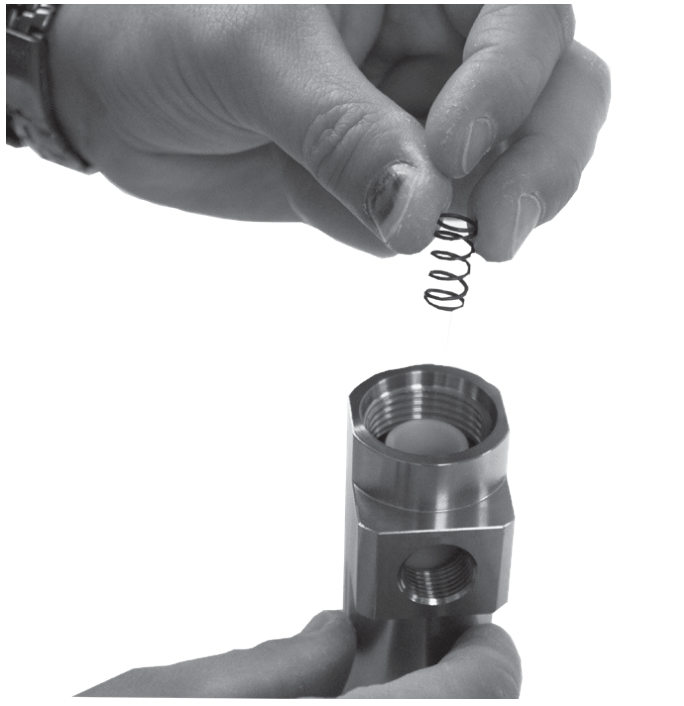

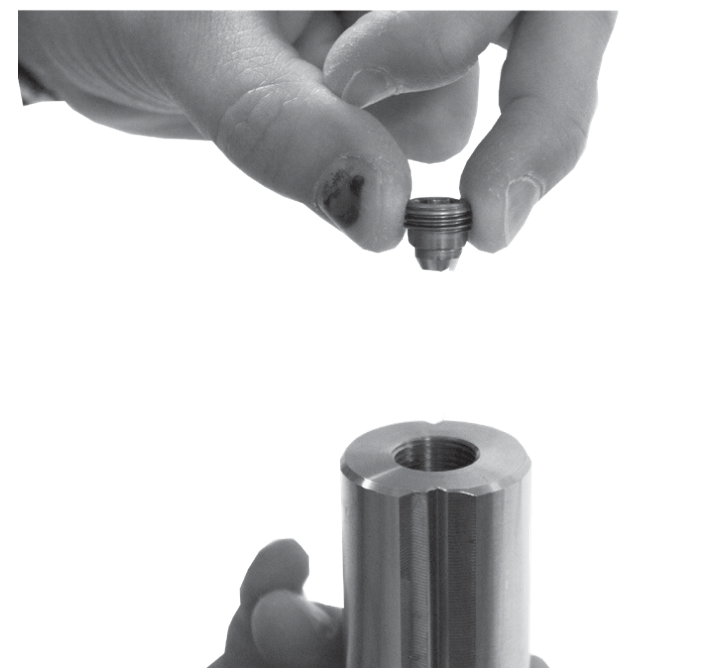

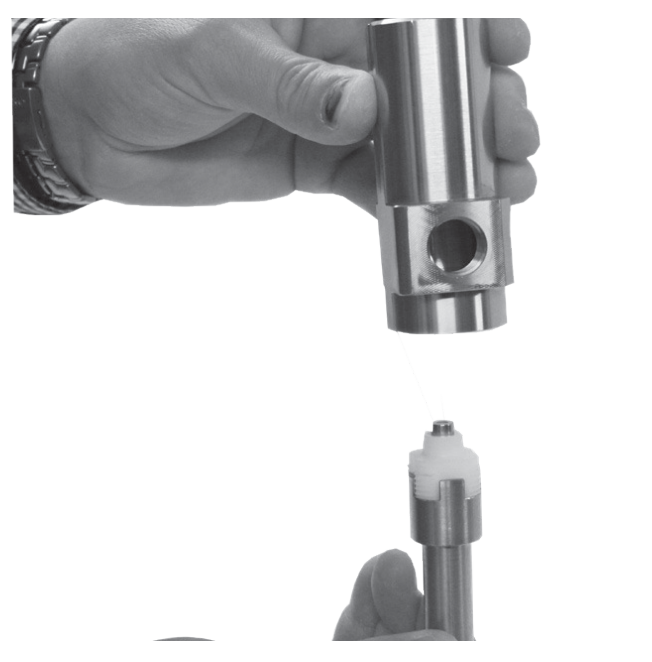

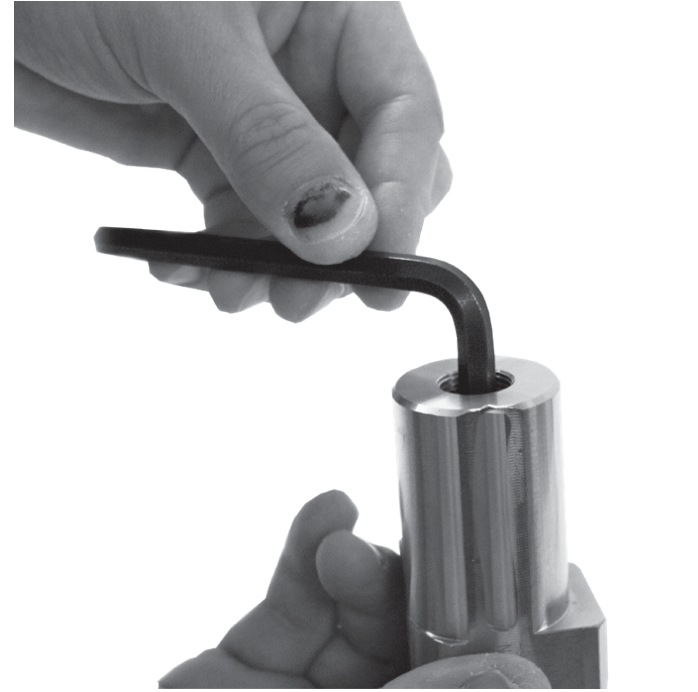

Learn How to Assembly Pressure Relief Valve From Danforss

Key Takeaways: Ensuring Pump Performance and Safety

By placing a relief valve on your water pump—especially a positive displacement unit—you gain tangible benefits in performance, safety, and cost efficiency. In your role within the desalination industry, you are tasked with meeting rigorous standards while maintaining tight control over budgets and operational workflows. Relief valves serve as a simple yet powerful mechanism, providing immediate pressure release in critical moments, protecting your investments, and supporting the uninterrupted delivery of safe, potable water. This is not just about adding another component; it is about increasing the resilience and longevity of your entire pumping infrastructure.

In Summary: Relief valves are essential for preventing overpressure conditions that threaten pump integrity, system reliability, and operational safety. By installing and maintaining a properly selected relief valve, you minimize downtime, extend equipment life, and enhance process efficiency. In a competitive B2B desalination landscape, where reliability, quality, and profitability are at the forefront of your priorities, it is clear that incorporating a relief valve is not just advisable—it is integral to your long-term success. Should you have any questions, welcome to contact Rohre pumps team, we are here to happy serve for you.

When selecting materials for a high-pressure pump, it is crucial to consider factors such as strength, corrosion resistance, and long-term reliability. The pump’s environment and intended application can heavily influence which material is best suited for its components. Among various stainless steels, 2205 duplex stainless steel, 316L, and 304 are common choices. Each offers distinct advantages that can impact pump performance, durability, and cost.

Why Material Selection Matters for Pumps

High-pressure pumps operate under demanding conditions. They may be exposed to high levels of stress, corrosive fluids, and fluctuating pressures. Materials that can maintain structural integrity, resist corrosion, and handle mechanical stress will extend the pump’s service life and enhance overall efficiency. By comparing 2205 duplex stainless steel to standard austenitic grades like 316L and 304, you can identify the most effective option for your specific pumping application.

2205 Duplex Stainless Steel: Composition & Properties

2205 duplex stainless steel is made up of approximately 21% chromium, 2.5% molybdenum, and 4.5% nickel combined with nitrogen. This balanced, dual-phase structure (a mix of austenite and ferrite) offers high strength, excellent toughness, and superior resistance to both general and localized stress corrosion.

Key Advantages of 2205 Duplex Stainless Steel

1. High Yield Strength
2205 duplex stainless steel has more than double the yield strength of conventional austenitic steels. It provides adequate ductility while allowing for thinner walls in storage tanks or pressure vessels—potentially reducing overall material costs.

2. Excellent Stress Corrosion Resistance
Even at lower alloy levels, duplex stainless steel outperforms standard austenitic grades like 316L and 304 in chloride-rich environments. This advantage becomes especially valuable in harsh industrial and marine conditions.

3. Superior Corrosion Resistance:
In many mediums, 2205 offers better corrosion resistance than standard 316L. Its enhanced properties sometimes allow it to replace high-alloy austenitic steels or even corrosion-resistant alloys in certain chemical processing applications.

4. Enhanced Localized Corrosion Resistance:
Compared to austenitic stainless steels with similar alloy content, 2205 duplex stainless steel shows stronger resistance to wear corrosion and fatigue corrosion.

5. Lower Thermal Expansion:
With a thermal expansion coefficient closer to that of carbon steel, 2205 simplifies joining different materials. This can be critical when producing composite structures or linings that combine carbon steel and stainless steel layers.

6. Higher Energy Absorption:
Under both dynamic and static loads, 2205 demonstrates greater energy absorption capability than austenitic stainless steels. This trait is significant for structural components where sudden impacts or explosions are a concern.

Material Comparison Table

Conclusion

Choosing the right material for your high-pressure pump’s components can significantly impact long-term performance, maintenance, and overall costs. While 304 and 316L stainless steels are well-regarded for their corrosion resistance and relative affordability, 2205 duplex stainless steel takes the lead in critical conditions where strength, stress corrosion resistance, and long-term durability are paramount.

As your partner in pump solutions, our team at Rohre Pump can help you evaluate your requirements and guide you toward the ideal material choice—ensuring your pumps deliver reliable, efficient performance in the most challenging applications.
