Water-lubricated axial piston pumps and configured modules for high-pressure pure-water and ultrapure-water supply.
Rohre supplies HPT Series Pumps for Danfoss pump replacement and builds High-Pressure Ultrapure Water Supply Modules for new OEM equipment. We work from the required flow, pressure, water quality and control interfaces to define the pump and module configuration.

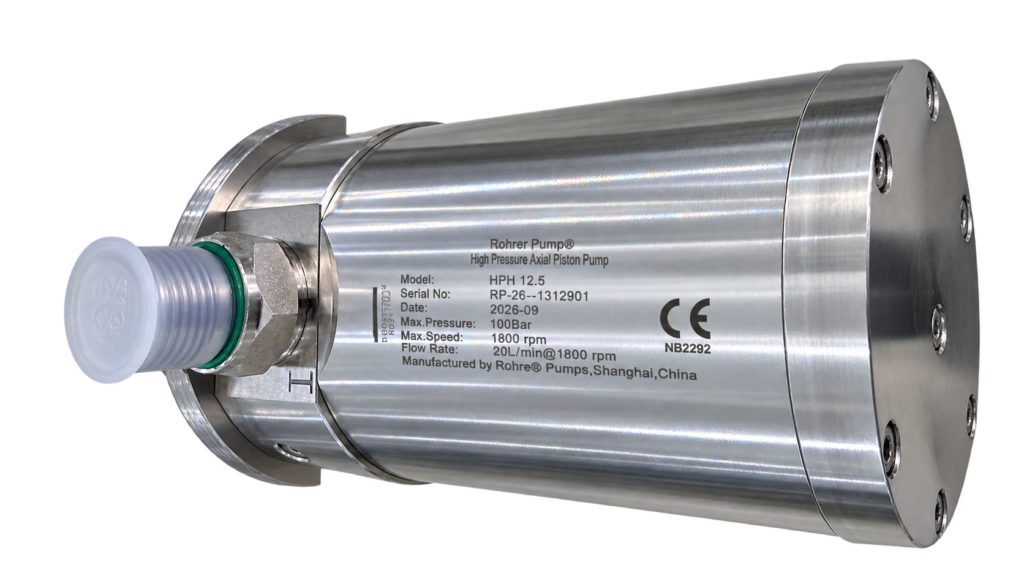

Rohre ultrapure-water pump coupled to an electric motor.
SUPPORTING EXISTING INSTALLATIONS AND NEW EQUIPMENT
HPT pumps for replacement and OEM projects
Rohre works with equipment OEMs, service companies and plant engineering teams on pump replacement and new high-pressure water supply modules. Applications include spraying, cleaning, semiconductor wafer and workpiece processing, humidification and adiabatic cooling.
01
Replacing a Danfoss UPW pump
Rohre offers HPT pump replacements for semiconductor cleaning equipment currently using Danfoss high-pressure ultrapure-water pumps, helping equipment suppliers address purchasing costs and delivery lead times. We review the duty point and installation together to identify the pump, connection and drive changes needed. Start with our Danfoss ultrapure-water pump replacement checklist.
02
High-Pressure Ultrapure Water Supply Module
For new equipment, we develop a High-Pressure Ultrapure Water Supply Module around the HPT pump and the available installation space. The configuration can include the motor and drive, mounting base, pump-side instrumentation and protection, inlet/outlet fittings and high-pressure hoses. Explore our module configurations.
03
Water supply matched to the process
In semiconductor applications, duties include wafer and substrate rinsing, polishing-pad washing and post-CMP cleaning. Humidification, adiabatic cooling and other spray processes have their own flow, pressure and water-quality requirements. We select the supply configuration for the actual process, including its operating cycle and changes in demand. See an HPT pump-and-motor configuration for semiconductor polishing-pad cleaning.
Water-lubricated design. HPT pumps use the pumped water for lubrication rather than a separate oil-lubricated pump circuit. Wetted-material and cleanliness requirements are reviewed against the intended application.
Pump-and-motor assembly with a separate control enclosure.
OEM PUMP ASSEMBLIES
High-Pressure Ultrapure Water Supply Module
For equipment builders, the module brings the HPT pump, drive and pump-side components into one assembly with defined mechanical, electrical and water connections. Constant-speed or variable-speed configurations can be selected to suit the operating cycle.
We agree the start/stop commands, pressure feedback and interlocks with your engineering team so the water supply can be integrated into your process-control sequence. The supply boundary is the module’s inlet/outlet fittings and specified high-pressure hoses; downstream nozzles, distribution and machine functions are integrated by the equipment OEM.
The HPT range covers different nominal displacements, operating pressures and shaft-speed limits. The final selection is evaluated against the required flow and pressure at the actual operating speed.

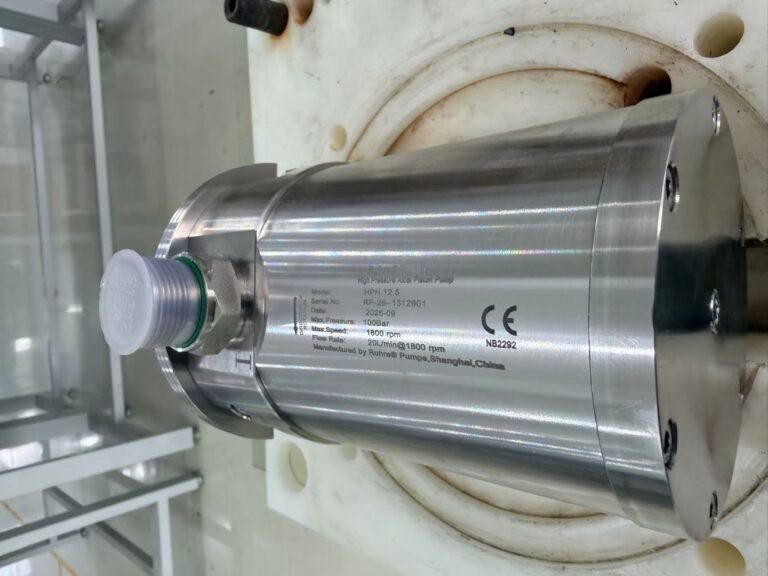

Pure-water pump body, connection and identification plate.
Pump family
Displacement cm³/rev
Outlet pressure barg
Speed range rpm
Housing
Water temperature
HPT 2.0 / 3.2 / 4.0 / 6.3
2 / 3.2 / 4 / 6.3
10–100
1,000–3,000
SS304
2–50°C
HPT 10 / 12.5
10 / 12.5
10–100
1,000–2,400
SS304
2–50°C
HPT 20 / 25 / 32
20 / 25 / 32
30–100
1,000–2,400
SS316
2–50°C
HPT 50 / 70 / 80 / 90
50 / 70 / 80 / 90
HPT 50: 30–80 HPT 70–90: 30–100
1,000–1,800
SS316
2–50°C
barg indicates gauge pressure; 100 bar corresponds to 10 MPa. Housing material does not represent the complete wetted-material specification, which is reviewed for each application.
Compact-model flow reference
The values below are reference flow rates at 100 bar and 1,500 rpm. Flow at other pressures or shaft speeds is determined during model selection.
Model
HPT 2.0
HPT 3.2
HPT 4.0
HPT 6.3
HPT 10
HPT 12.5
Flow · L/min
1.7
3.6
5.0
8.6
12.6
16.5
Flow · L/h
102
216
300
516
756
990
The proposed model is reviewed together with the specified duty point, permitted shaft-speed range and motor power. Performance data and dimensional drawings can be included in the selection package. Our HPT flow, pressure, speed and motor-power guide explains how these inputs work together during selection.
APPLICATION REQUIREMENTS AND INTERFACES
Engineering considerations for OEM integration
Water & materials
Water quality, including resistivity or conductivity, temperature, particle limits and restrictions on wetted materials, informs component selection and the applicable acceptance criteria.
Inlet supply
HPT pumps are not self-priming and require a stable, flooded inlet. The available inlet pressure and flow must account for piping and filtration losses. The inlet circuit should be vented before operation.
Motor & speed control
Motor sizing and the choice of speed control depend on the available electrical supply and operating cycle. Where a VFD is required, its operating range is matched to the selected pump and motor.
Connections & mounting
For replacement installations, mounting dimensions, port connections, shaft and coupling arrangements are reviewed against the existing equipment. New OEM designs may specify the motor flange, bell housing, mounting base and connection geometry.
Ultrapure-water applications: wetted-material compatibility and any required cleanliness acceptance limits are agreed for the supplied pump-side components. System-wide water quality remains dependent on the complete process installation.
Pump and motor assembly details
These workshop photographs show the assembly from four angles: the pump housing, motor mounting feet, bell housing and terminal box. They help locate the interfaces to compare against your equipment drawing.
Select a photograph to view the full-size image.
Top view of the pump, bell housing and motor.Opposite-side view of the pump-and-motor assembly.Motor terminal box and pump connection arrangement.Pump end cover, capped connection and bell-housing flange.
Pure-water supply and pump testing
Online resistivity monitoring at the water-production outlet
An online resistivity probe at the outlet of our water-production equipment monitors the produced water. The instrument is configured for temperature compensation to 25°C. This is the reference temperature for the reported resistivity; the actual water temperature can vary during production.
For a pump test, agree the water-quality acceptance criteria, measurement points and operating conditions before testing. Evaluating the pump’s effect on water quality requires measurements at the pump inlet and outlet under those conditions.

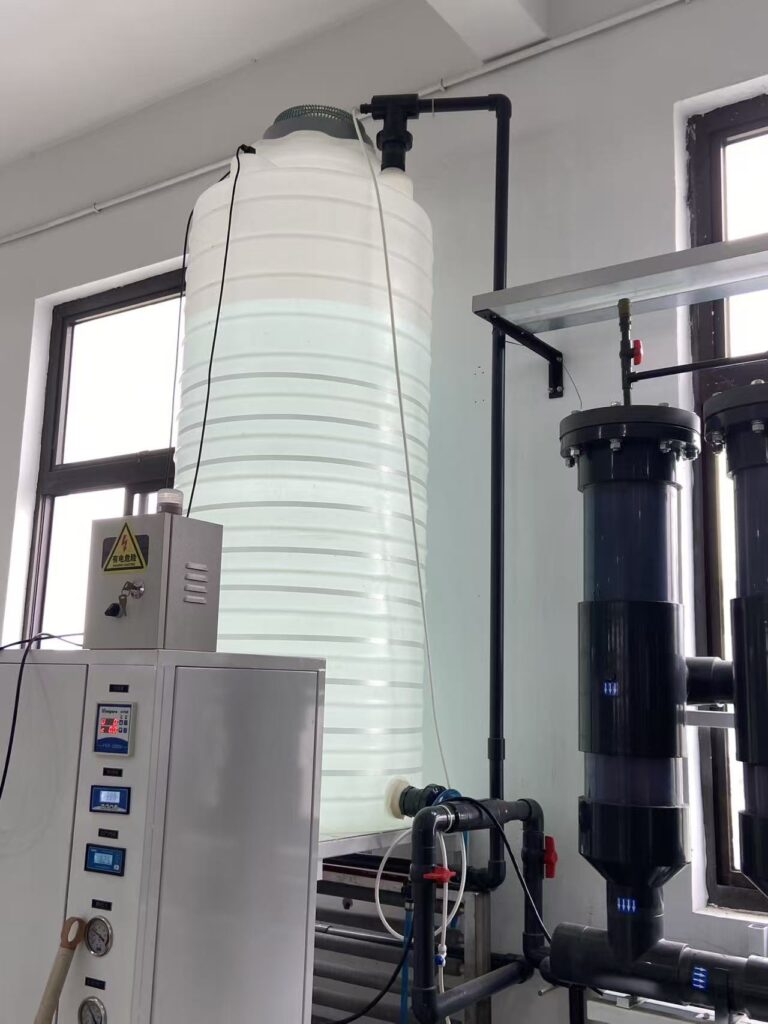

Ultrapure-water supply equipmentWater storage, treatment vessels and control instruments in the supply setup.

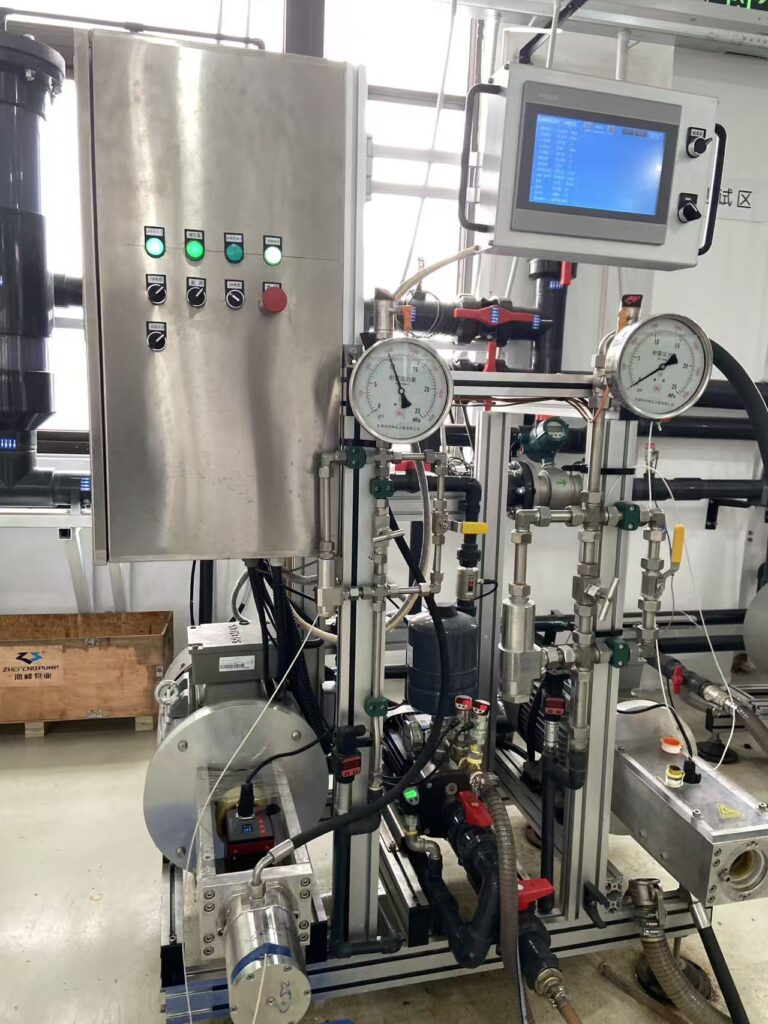

High-pressure pump test rigPressure gauges, piping and controls used for pump testing.
Technical questions
What are the pressure limits of the HPT Series?
Most HPT models listed above have a maximum discharge pressure of 100 barg (10 MPa); HPT 50 is limited to 80 barg (8 MPa). The specified duty must also remain within the selected pump’s operating range and the pressure rating of the assembled components.
Can HPT pumps replace existing Danfoss pure-water pumps?
We select an HPT alternative for the existing Danfoss pump by comparing flow, pressure, shaft speed, mounting, port connections and the drive arrangement. This identifies the proposed pump and any changes needed for the replacement.
Can Rohre supply a pump with motor and variable-speed drive?
Yes. Depending on project requirements, the supply can include the HPT pump, motor, variable-frequency drive, coupling, bell housing, mounting base and specified pump-side accessories. The scope and electrical interfaces are defined in the technical proposal.
How is suitability for ultrapure-water service evaluated?
The assessment considers the incoming water specification, wetted materials, seals, operating conditions and any customer-defined cleanliness limits. Inspection or acceptance testing is agreed for the components included in Rohre’s supply.
HPT SERIES · TECHNICAL ENQUIRIES
Discuss your pump replacement or water supply module
For an existing installation, send us the pump nameplate, required flow and pressure, and a photograph or drawing. We can review the HPT selection and the changes needed to the drive and connections.
For a new module, send us the application, required flow and pressure range, inlet-water conditions, available space and electrical supply. Include the intended operating cycle and process-control interfaces so we can define the pump, drive and connections with your engineering team.
